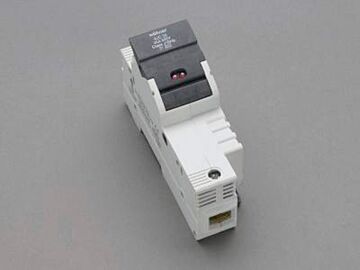

31932 Wohner holder for cylindrical fuses, with LED
MPN: 31932
Alt. SKU: 31932000
Special Price
£37.25
£31.04
Regular Price
£46.57
Why Choose the Holder for Cylindrical Fuses with LED (31932)?
This fuse holder is designed for reliable and safe mounting of cylindrical fuses in panel applications. Featuring a large clamping range, it can accommodate two identical adjacent conductors, enhancing installation flexibility. The integrated LED indicator provides clear visual feedback of a tripped fuse, ensuring quick fault detection. Suitable for both AC and DC voltage applications, it supports any polarity for DC, making it versatile for various electrical systems. Its halogen-free construction aligns with modern environmental standards, and the product is fully approved by UL and CSA for high safety and quality assurance.
Key Benefits
- Large clamping range supports two identical adjacent conductors for easier wiring.
- Integrated LED indicator for immediate visual identification of a tripped fuse.
- Compatible with Class J / 1P cylindrical fuses, rated up to 30 A and 600 V.
- Suitable for mounting on rails, simplifying panel installation.
- Supports any polarity for DC voltage applications, increasing versatility.
- Halogen-free material ensures environmentally friendly use.
- Complies with UL and CSA approvals for safety and reliability.
Technical Specifications
- Item number: 31932
- Description: holder for cylindrical fuses, with LED
- Rated current: 30 A
- Rated voltage AC: 600 V
- Rated voltage DC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 36 x 115 x 69 mm
- Weight: 15.8 kg/100
- Halogen free: Yes
- Approval: UL 4248-8
- Approval: UL 4248-1
- Approval: CSA , UL
- Approval: for UL feeder circuits >250V
- Approval: type number: AJC30
- Approval: UL file: E230163, UL category (for USA): IZLT https://www.ul.com
- Approval: UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 6225-01 https://directories.csa-international.org
Frequently Asked Questions
What type of fuses does this holder support?
This holder is designed for Class J / 1P cylindrical fuses with dimensions 21x57 mm.
Can the fuse holder be used for DC voltage applications?
Yes, it supports any polarity for DC voltage applications up to 600 V.
Does the holder carry current?
As a mechanical holder, it does not carry current itself but securely holds the fuse which carries the current.
Is the product environmentally friendly?
Yes, the holder is made from halogen-free materials.
What approvals does this product have?
It is approved under UL 4248-8, UL 4248-1, CSA, and is suitable for UL feeder circuits above 250 V.
| Manufacturer Part Number | 31932 |
|---|---|
| Barcode | 4021267319328 |
| Height | 115mm |
| Width | 36mm |
| Depth | 69mm |
| Alternative Product SKU | 31932000 |
| Manufacturer | Wohner |
| Packed Quantity | 6 |
