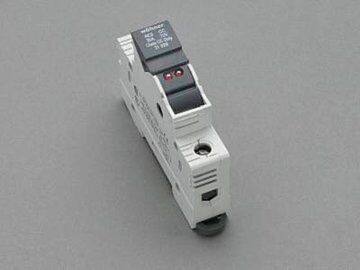

31929 Wohner holder for cylindrical fuses, with LED
MPN: 31929
Alt. SKU: 31929000
Special Price
£14.87
£12.39
Regular Price
£18.59
Why Choose the Holder for Cylindrical Fuses with LED (31929)?
The holder for cylindrical fuses with LED indication offers a reliable and efficient solution for fuse mounting in panel applications. Designed for Class CC / 1P fuses, it supports a rated current of 30 A and voltage ratings up to 72 V AC/DC. Its LED indicator provides clear visual feedback of a tripped fuse link, enhancing maintenance and safety. The holder is suitable for mounting on rails and features a large clamping range, accommodating two identical adjacent conductors. Additionally, it supports any polarity for DC voltage and includes a holder for labelling, making it ideal for organised electrical installations.
Key Benefits
- LED indication for quick identification of tripped fuse links
- Large clamping range suitable for two identical adjacent conductors
- Compatible with Class CC / 1P cylindrical fuses
- Supports any polarity for DC voltage applications
- Halogen-free construction for environmentally friendly installations
- Easy mounting on standard rails for flexible installation
- Includes holder for labelling to improve circuit identification
- Certified with multiple approvals including UL and CCC for safety and compliance
Technical Specifications
- Item number: 31929
- Description: holder for cylindrical fuses, with LED
- Rated current: 30 A
- Rated voltage AC: 72 V
- Rated voltage DC: 72 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 18 x 81 x 58 mm
- Weight: 6.2 kg/100
- Halogen free: Yes
- Approval: UL 4248-1
- Approval: UL 4248-4
- Approval: UL , CCC
- Approval: type number: AESCC
- Approval: UL file: E230163, UL category (for USA): IZLT https://www.ul.com
- Approval: UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com
- Approval: CCC certificate: 21107299296
Frequently Asked Questions
What type of fuses does this holder support?
This holder is designed for Class CC / 1P cylindrical fuses.
Does the holder indicate when a fuse has tripped?
Yes, it features an LED indicator that lights up when the fuse link has tripped.
Can this holder be used for DC voltage applications?
Yes, it supports any polarity for DC voltage up to 72 V.
Is the holder suitable for mounting on rails?
Yes, it is designed for easy mounting on standard mounting rails.
Is the product environmentally friendly?
Yes, the holder is halogen free, supporting environmentally responsible installations.
| Manufacturer Part Number | 31929 |
|---|---|
| Barcode | 4021267319298 |
| Height | 81mm |
| Width | 18mm |
| Depth | 58mm |
| Alternative Product SKU | 31929000 |
| Manufacturer | Wohner |
| Packed Quantity | 12 |
