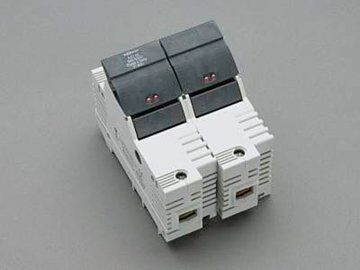

31924 Wohner holder for cylindrical fuses, with LED
MPN: 31924
Alt. SKU: 31924000
Special Price
£83.83
£69.86
Regular Price
£104.80
Why Choose the Holder for Cylindrical Fuses with LED (31924)?
The holder for cylindrical fuses with LED (Part No. 31924) is designed for reliable and safe fuse mounting on rails within electrical panels. It supports Class J / 2P fuses with a large clamping range, allowing for the connection of two identical adjacent conductors. The integrated LED indicator provides clear visual signalling of a tripped fuse, enhancing maintenance efficiency. Suitable for both AC and DC voltage applications, it offers versatile installation with any polarity for DC systems. This holder is halogen free and complies with stringent UL and CSA approvals, ensuring high safety and quality standards.
Key Benefits
- Large clamping range accommodates two identical adjacent conductors
- Integrated LED indicator for easy identification of tripped fuses
- Compatible with Class J / 2P cylindrical fuses (27x60 mm)
- Suitable for AC and DC voltage applications with any polarity
- Halogen free material for environmentally friendly installations
- Mounts easily on standard mounting rails
- Certified to UL 4248-8, UL 4248-1, and CSA standards
Technical Specifications
- Item number: 31924
- Description: holder for cylindrical fuses, with LED
- Rated current: 60 A
- Rated voltage AC: 600 V
- Rated voltage DC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 80 x 118 x 82 mm
- Weight: 37.0 kg/100
- Halogen free: Yes
- Approval: UL 4248-8
- Approval: UL 4248-1
- Approval: CSA , UL
- Approval: for UL feeder circuits >250V
- Approval: type number: AJC60
- Approval: UL file: E230163, UL category (for USA): IZLT https://www.ul.com
- Approval: UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 6225-01 https://directories.csa-international.org
Frequently Asked Questions
What type of fuses does this holder support?
This holder is designed for Class J / 2P cylindrical fuses measuring 27 x 60 mm.
Can the holder be used for DC voltage applications?
Yes, it supports DC voltage applications with any polarity up to 600 V.
Does the holder itself carry current?
This is a mechanical holder and does not carry current itself; it securely holds the fuse which carries the current.
Is the holder environmentally friendly?
Yes, the holder is halogen free, making it suitable for environmentally conscious installations.
What approvals does this product have?
It is approved under UL 4248-8, UL 4248-1, CSA, and is suitable for UL feeder circuits above 250 V.
| Manufacturer Part Number | 31924 |
|---|---|
| Barcode | 4021267319243 |
| Height | 118mm |
| Width | 80mm |
| Depth | 82mm |
| Alternative Product SKU | 31924000 |
| Manufacturer | Wohner |
| Packed Quantity | 3 |
