31923 Wohner holder for cylindrical fuses, with LED
MPN: 31923
Alt. SKU: 31923000
Special Price
£41.86
£34.88
Regular Price
£52.32
Why Choose the Holder for Cylindrical Fuses with LED (31923)?

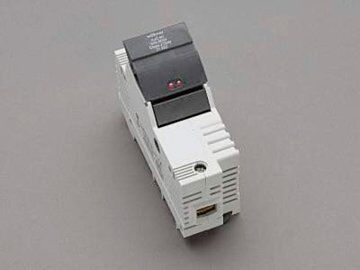

The holder for cylindrical fuses with LED (Part No. 31923) is designed for reliable and safe fuse mounting in panel applications. It supports Class J / 1P fuses with a large clamping range, accommodating two identical adjacent conductors. The integrated LED indicator provides clear visual feedback for tripped fuses, enhancing maintenance efficiency. Suitable for both AC and DC voltage applications, this fuse holder ensures versatile use with any polarity for DC. Its robust design includes box terminals for 50 mm² conductors and mounting rail compatibility, making it an ideal choice for industrial electrical systems requiring dependable fuse protection.
Key Benefits
- Large clamping range supports two identical adjacent conductors
- Integrated LED indicator for quick identification of tripped fuses
- Compatible with Class J / 1P cylindrical fuses (27x60 mm)
- Suitable for AC and DC voltage applications with any polarity
- Box terminal connection for 50 mm² conductors ensures secure wiring
- Designed for mounting rail installation for easy panel integration
- Halogen-free construction for environmentally friendly use
- Certified to UL and CSA standards for safety and reliability
Technical Specifications
- Item number: 31923
- Description: holder for cylindrical fuses, with LED
- Rated current: 60 A
- Rated voltage AC: 600 V
- Rated voltage DC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 40 x 118 x 82 mm
- Weight: 18.2 kg/100
- Halogen free: Yes
- Approval: UL 4248-8
- Approval: UL 4248-1
- Approval: CSA , UL
- Approval: for UL feeder circuits >250V
- Approval: type number: AJC60
- Approval: UL file: E230163, UL category (for USA): IZLT https://www.ul.com
- Approval: UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 6225-01 https://directories.csa-international.org
Frequently Asked Questions
What type of fuses does this holder support?
This holder supports Class J / 1P cylindrical fuses with dimensions 27 x 60 mm.
Is the fuse holder suitable for DC voltage applications?
Yes, it is suitable for DC voltage applications with any polarity up to 600 V.
Does the holder carry current itself?
As a mechanical holder, it does not carry current but securely holds the fuse which carries the current.
What is the purpose of the LED indicator?
The integrated LED indicator signals when the fuse has tripped, allowing for quick visual identification.
Is this product environmentally friendly?
Yes, the holder is halogen-free, contributing to environmentally responsible installations.
| Manufacturer Part Number | 31923 |
|---|---|
| Barcode | 4021267319236 |
| Height | 118mm |
| Width | 40mm |
| Depth | 82mm |
| Alternative Product SKU | 31923000 |
| Manufacturer | Wohner |
| Packed Quantity | 6 |
