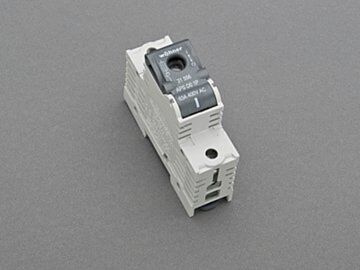

31556 Wohner switch-disconnector for D0 fuses up to 63 A
MPN: 31556
Alt. SKU: 31556000A
Special Price
£36.56
£30.47
Regular Price
£45.70
Why Choose the Switch-Disconnector for D0 Fuses up to 63 A (31556)?
This switch-disconnector is designed for reliable and safe operation in panel-mounted electrical systems. Featuring a snap-action mechanism for operator independent switching, it ensures quick and secure disconnection. Its compact 1-pole design fits neatly on mounting rails, making installation straightforward. The inclusion of an LED indicator provides clear operational status at a glance. Constructed from halogen-free plastic, it supports environmentally conscious installations while meeting stringent VDE and DNV GL approvals.
Key Benefits
- Supports D0 fuses up to 63 A for versatile protection.
- Operator independent snap-action mechanism for reliable switching.
- LED indicator for clear visual status feedback.
- Double function terminal allowing feed from any direction.
- Captive fuse carriers enhance safety and ease of maintenance.
- Sealable operation to prevent unauthorised switching.
- Compact dimensions (27 x 90 x 70 mm) suitable for panel mounting rails.
- Halogen-free plastic material for environmentally friendly applications.
- Approved by VDE and DNV GL, ensuring compliance with industry standards.
Technical Specifications
- Item number: 31556
- Description: switch-disconnector for D0 fuses up to 63 A
- Dimensions (W x H x D): 27 x 90 x 70 mm
- Weight: 14.2 kg/100
- Material: Plastic
- Halogen free: Yes
- Approval: VDE , DNV GL
- Approval: type number: APS-D0
Frequently Asked Questions
Does this switch-disconnector carry current?
No, as a mechanical switch-disconnector, it does not carry current itself but is designed to safely disconnect circuits with D0 fuses.
What is the purpose of the LED indicator?
The LED provides a clear visual indication of the switch-disconnector’s operational status, improving safety and ease of monitoring.
Can the fuse carrier be sealed?
Yes, the operation is sealable to prevent unauthorised switching, enhancing security in critical applications.
Is this product suitable for mounting on standard rails?
Yes, it is designed for mounting on standard mounting rails for easy integration into panel systems.
Are there downloadable resources available?
Yes, technical information, mounting instructions, CAD models, and conformity declarations are available for download.
| Manufacturer Part Number | 31556 |
|---|---|
| Barcode | 4021267315566 |
| Height | 90mm |
| Width | 27mm |
| Depth | 70mm |
| Alternative Product SKU | 31556000A |
| Manufacturer | Wohner |
| Packed Quantity | 3 |
| Number of Poles | 1 pole |
| Rated voltage | 400V |
| Rated current | 63A |
