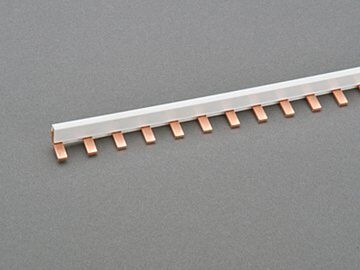

31548 Wohner comb-type busbar, 1-pole, bridge type, pitch 18 mm
MPN: 31548
Alt. SKU: 31548000
Special Price
£31.27
£26.06
Regular Price
£39.08
Why Choose the Comb-Type Busbar 1-Pole Bridge Type, Pitch 18 mm (31548)?
This comb-type busbar is designed for efficient and reliable electrical distribution in industrial applications. With a 1-pole bridge type configuration and an 18 mm pitch, it ensures optimal connectivity and ease of installation. Rated for 100 A current and compatible with both AC and DC voltages up to 600 V, it meets rigorous safety and performance standards. Its halogen-free construction supports environmentally responsible installations.
Key Benefits
- Supports a rated current of 100 A, suitable for demanding electrical circuits.
- Compatible with both AC and DC voltages up to 600 V, providing versatile application.
- Halogen-free material enhances safety and environmental compliance.
- Complies with UL 508 and other UL approvals, ensuring high safety standards.
- Mechanical design does not carry current but facilitates secure electrical bridging.
- Dimensions of 997 x 5 x 15 mm allow for compact and space-saving installation.
- Includes comprehensive documentation and CAD models for seamless integration.
Technical Specifications
- Item number: 31548
- Description: comb-type busbar, 1-pole, bridge type, pitch 18 mm
- Rated current: 100 A
- Rated voltage AC: 600 V
- Rated voltage DC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 997 x 5 x 15 mm
- Weight: 47.5 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: CTB25-118
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
What is the primary function of this comb-type busbar?
This busbar serves as a mechanical bridge to connect electrical circuits securely, facilitating current distribution without carrying current itself.
Is this busbar suitable for both AC and DC applications?
Yes, it is rated for use with AC and DC voltages up to 600 V, making it versatile for various electrical systems.
Does the busbar contain any hazardous materials?
No, it is halogen-free, ensuring safer use and compliance with environmental standards.
What approvals does this product have?
It holds UL 508 certification and is approved for UL feeder circuits above 250 V, among other UL category approvals.
Where can I find technical documentation and CAD models?
Technical information, CAD models in various formats, and conformity declarations are available via the provided download links.
| Manufacturer Part Number | 31548 |
|---|---|
| Barcode | 4021267315481 |
| Height | 5mm |
| Width | 997mm |
| Depth | 15mm |
| Alternative Product SKU | 31548000 |
| Manufacturer | Wohner |
| Packed Quantity | 10 |
