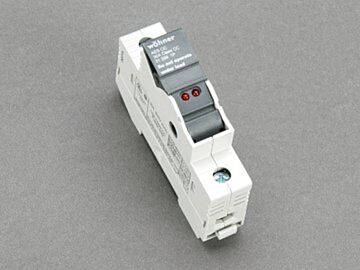

31298 Wohner holder for cylindrical fuses, with LED
MPN: 31298
Alt. SKU: 31298000
Special Price
£14.40
£12.00
Regular Price
£18.00
Why Choose the Holder for Cylindrical Fuses with LED (31298)?
This fuse holder is designed for reliable and safe mounting of cylindrical fuses, featuring an integrated LED indicator to signal a tripped fuse link. Suitable for Class CC / 1P fuses, it supports both AC and DC voltages up to 600 V and a rated current of 30 A. Its robust construction and halogen-free materials ensure durability and environmental safety. The holder is ideal for mounting on rails within panels, providing a clear visual indication of fuse status to reduce downtime and maintenance efforts.
Key Benefits
- Large clamping range accommodates two identical adjacent conductors for flexible wiring.
- Integrated LED indicator clearly signals a tripped fuse link, enhancing safety and maintenance efficiency.
- Polarity-independent design for DC voltage applications, simplifying installation.
- Includes a holder for labelling, aiding in clear identification and organisation.
- Halogen-free construction supports environmentally responsible installations.
- Complies with multiple international approvals including UL, CSA, and CCC for assured quality and safety.
- Compact dimensions (18 x 81 x 58 mm) suitable for panel mounting rail systems.
Technical Specifications
- Item number: 31298
- Description: holder for cylindrical fuses, with LED
- Rated current: 30 A
- Rated voltage AC: 600 V
- Rated voltage DC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 18 x 81 x 58 mm
- Weight: 6.2 kg/100
- Halogen free: Yes
- Approval: UL 4248-1
- Approval: UL 4248-4
- Approval: CSA , UL , CCC
- Approval: for UL feeder circuits >250V
- Approval: type number: AESCC
- Approval: UL file: E230163, UL category (for USA): IZLT https://www.ul.com
- Approval: UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 6225-01 https://directories.csa-international.org
- Approval: CCC certificate: 21107299296
Frequently Asked Questions
Does the holder carry current?
This is a mechanical holder designed to securely mount cylindrical fuses and does not carry current itself. The fuse within the holder is responsible for current conduction and protection.
Can the LED indicator be used for both AC and DC applications?
Yes, the LED indicator is designed to function correctly for both AC and DC voltages up to 600 V, providing clear indication of a tripped fuse link regardless of polarity.
Is the holder compatible with multiple fuse sizes?
The holder is designed for Class CC / 1P cylindrical fuses and features a large clamping range, allowing it to accommodate two identical adjacent conductors for flexible wiring configurations.
What approvals does this product have?
The product holds multiple international approvals including UL 4248-1, UL 4248-4, CSA, UL, and CCC certifications, ensuring compliance with safety and quality standards.
| Manufacturer Part Number | 31298 |
|---|---|
| Barcode | 4021267312985 |
| Height | 81mm |
| Width | 18mm |
| Depth | 58mm |
| Alternative Product SKU | 31298000 |
| Manufacturer | Wohner |
| Packed Quantity | 12 |
