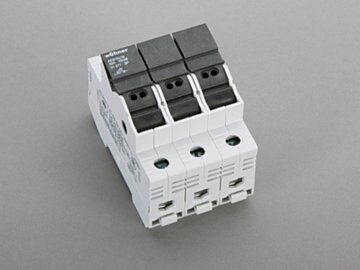

31277 Wohner holder for cylindrical fuses, for semiconductor fuses
MPN: 31277
Alt. SKU: 31277000
Special Price
£19.32
£16.10
Regular Price
£24.14
Why Choose the Holder for Cylindrical Fuses (31277)?
The holder for cylindrical fuses, designed specifically for semiconductor fuses, offers reliable and secure mounting on rails within panel systems. Engineered to accommodate a large clamping range, it ensures a stable connection while providing a dedicated holder for labels to aid in clear identification. Its halogen-free construction supports environmentally conscious installations, and the product is backed by multiple international approvals, guaranteeing compliance and safety in demanding electrical environments.
Key Benefits
- Compatible with 10 x 38 mm cylindrical semiconductor fuses
- Supports rated currents up to 30 A and voltages up to 600 V AC/DC
- Large clamping range for secure fuse retention
- Integrated label holder for easy identification and organisation
- Halogen-free material for safer and eco-friendly installations
- Designed for mounting on standard mounting rails within panels
- Extensively approved including UL, CSA, and CCC certifications
- Mechanical product – does not carry current directly, ensuring safe fuse operation
Technical Specifications
- Item number: 31277
- Description: holder for cylindrical fuses, for semiconductor fuses
- Rated current: 30 A
- Rated voltage AC: 600 V
- Rated voltage DC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 54 x 81 x 58 mm
- Weight: 15.5 kg/100
- Halogen free: Yes
- Approval: UL 4248-1
- Approval: for UL feeder circuits >250V
- Approval: type number: AES10x38
- Approval: UL file: E230163, UL category (for USA): IZLT https://www.ul.com
- Approval: UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 6225-01 https://directories.csa-international.org
- Approval: CCC certificate: 2012010302581751
Frequently Asked Questions
What type of fuses does this holder support?
This holder is designed for cylindrical semiconductor fuses with dimensions of 10 x 38 mm.
Can this fuse holder carry current directly?
No, this is a mechanical holder designed to securely mount fuses; it does not carry current itself.
Is the product suitable for use in environmentally sensitive applications?
Yes, the holder is made from halogen-free materials, making it suitable for eco-friendly installations.
What mounting options are available for this fuse holder?
It is designed for mounting on standard mounting rails within electrical panels.
Does this product have any certifications?
Yes, it holds multiple approvals including UL 4248-1, CSA, and CCC certifications.
| Manufacturer Part Number | 31277 |
|---|---|
| Barcode | 4021267312770 |
| Height | 81mm |
| Width | 54mm |
| Depth | 58mm |
| Alternative Product SKU | 31277000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
