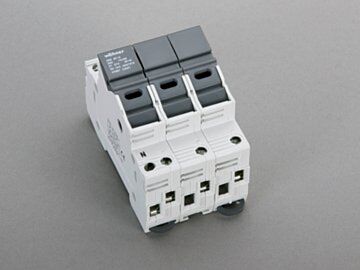

31274 Wohner holder for cylindrical fuses
MPN: 31274
Alt. SKU: 31274000A
Special Price
£23.84
£19.87
Regular Price
£29.81
Why Choose the Holder for Cylindrical Fuses (31274)?
The holder for cylindrical fuses (part number 31274) is designed for reliable and secure mounting of 10 x 38 mm cylindrical fuses. It features a large clamping range and an integrated label holder, making it ideal for panel installations. This mechanical product does not carry current itself but provides a robust and safe housing for fuses rated up to 32 A / 690 V. Its halogen-free construction ensures environmental safety and compliance with modern standards.
Key Benefits
- Large clamping range accommodates various fuse sizes.
- Integrated label holder for easy identification and organisation.
- Designed for mounting on standard mounting rails, simplifying installation.
- Halogen-free material supports eco-friendly applications.
- Certified with CCC approval and corresponding certificates for assured quality.
- Compact dimensions (54 x 81 x 58 mm) suitable for panel mounting.
- Mechanical design ensures no current is carried by the holder itself, enhancing safety.
Technical Specifications
- Item number: 31274
- Description: holder for cylindrical fuses
- Dimensions (W x H x D): 54 x 81 x 58 mm
- Weight: 22.0 kg/100
- Halogen free: Yes
- Approval: CCC
- Approval: type number: AES10x38I
- Approval: CCC certificate: 21107317576
Frequently Asked Questions
What fuse sizes does this holder support?
This holder is designed for cylindrical fuses sized 10 x 38 mm.
Is the holder suitable for carrying electrical current?
No, as a mechanical product, the holder itself does not carry current. It securely holds the fuse which carries the current.
Can this holder be mounted on a standard mounting rail?
Yes, it is designed for mounting on standard mounting rails for easy installation.
Is the product environmentally friendly?
Yes, the holder is made from halogen-free materials, supporting environmentally responsible applications.
What certifications does this product have?
The holder is CCC certified with type number AES10x38I and holds the CCC certificate number 21107317576.
| Manufacturer Part Number | 31274 |
|---|---|
| Barcode | 4021267312749 |
| Height | 81mm |
| Width | 54mm |
| Depth | 58mm |
| Mount Type | DIN-rail mounted |
| Alternative Product SKU | 31274000A |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
| Number of Poles | 4 pole |
| Degree of protection (IP) | IP20 |
| Nominal voltage | 690V |
| Width in number of modular spacings | 3 |
| Built-in depth | 58mm |
| Concurrently switching neutral conductor | Yes |
| For fuse size | 10x38 mm |
