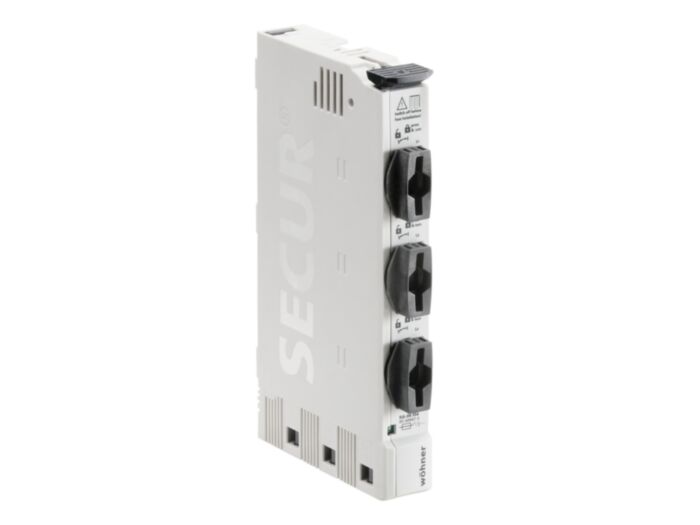

31262000A Woehner 3 pole 32A Switch Disconnector Fuse
MPN: 31262
Alt. SKU: 31262000A
Special Price
£64.54
£53.78
Regular Price
£80.66
Why Choose the Wöhner 31262 CrossBoard® Busbar Adapter?
The Wöhner 31262 is a precision-engineered CrossBoard® busbar adapter designed for the direct mounting of modular DIN rail devices onto the CrossBoard® system. It enables fast, secure integration of protective and switching devices within compact power distribution assemblies.
Built for industrial panel builders and OEM manufacturers, the 31262 ensures reliable electrical contact with the CrossBoard® while maintaining mechanical stability and alignment. Its modular concept supports scalable system design and significantly reduces installation time.
Key Features
- Busbar adapter for Wöhner CrossBoard® systems.
- Enables direct mounting of modular DIN rail devices.
- Secure electrical contact and mechanical fixing.
- Compact design for high-density distribution boards.
- Supports modular system expansion and flexibility.
- Suitable for industrial and commercial switchgear assemblies.
Technical Specifications
- Manufacturer: Wöhner
- Model: 31262
- MPN: 31262000A
- Product type: Busbar adapter
- System compatibility: CrossBoard®
- Application: Modular DIN rail devices
- Mounting: Direct connection to CrossBoard® busbar system
- Compliance: Suitable for IEC and UL assemblies when used within approved systems
- EAN: 4021267312623
Typical Applications
- Mounting miniature circuit breakers and modular protection devices.
- Industrial distribution boards and switchgear systems.
- Compact OEM control panels requiring scalable power distribution.
- Commercial installations using CrossBoard® modular architecture.
Frequently Asked Questions
What is the Wöhner 31262 used for?
The 31262 is a busbar adapter that allows modular DIN rail devices to be mounted directly onto the CrossBoard® system.
Which system is it compatible with?
It is specifically designed for the Wöhner CrossBoard® busbar system.
Does it provide electrical contact to the busbar?
Yes. The adapter ensures secure and reliable electrical contact within the CrossBoard® assembly.
Is it suitable for industrial panel building?
Yes. It is intended for industrial and commercial switchgear assemblies built to IEC and UL standards when used within approved systems.
Can it support future expansion?
Yes. The modular CrossBoard® concept allows easy expansion or reconfiguration as system requirements evolve.
| Manufacturer Part Number | 31262 |
|---|---|
| Barcode | 4021267312626 |
| Height | 200mm |
| Width | 200mm |
| Depth | 30mm |
| Country of Manufacture | Germany |
| HS Code | 85361050 |
| Alternative Product SKU | 31262000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Range | Crossboard |
| Number of Poles | 3 pole |
| Cable Entry | Bottom |
| Max. rated operation voltage Ue AC | 690V |
| Type of control element | Rocker lever |
| Rated permanent current Iu | 32A |
| Halogen free | Yes |
| Rated voltage | 690V |
| Rated current | 32A |
| Degree of protection (IP), front side | IP30 |
| Max. rated operation current Ie | 32A |
| Type of electrical connection of main circuit | Spring clamp connection |
| Rated surge voltage | 6kV |
| Suitable for fuses | 10x38 mm |
| Rated Isolation Voltage Ui AC | 800V |
| Min. Cross Section | 2.5 mm² |
| Max. Cross Section | 16 mm² |
