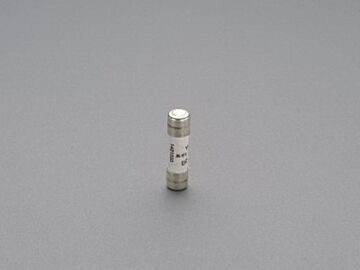

31207 Wohner cylindr. fuse link 4 A
MPN: 31207
Alt. SKU: 31207000
Special Price
£9.68
£8.07
Regular Price
£12.10
Why Choose the Cylindrical Fuse Link 4 A (31207)?
The Cylindrical Fuse Link 4 A (31207) is an essential mechanical component designed for reliable circuit protection. Manufactured with high-quality porcelain, this fuse link ensures durability and safety in electrical installations. Its halogen-free construction supports environmentally friendly applications, while the UL approval guarantees compliance with stringent safety standards. Ideal for use in systems operating at up to 700 V AC and frequencies of 50/60 Hz, it offers dependable performance in a compact 10 x 38 mm size.
Key Benefits
- Robust porcelain material providing excellent insulation and mechanical strength.
- Halogen-free design contributes to safer and more sustainable electrical systems.
- UL certified for assured quality and safety compliance.
- Compact dimensions (10 x 10 x 38 mm) suitable for space-constrained installations.
- Mechanical product that does not carry current, ensuring safe operation within fuse holders.
- Compatible with both 50 Hz and 60 Hz electrical systems.
Technical Specifications
- Item number: 31207
- Description: cylindr. fuse link 4 A
- Rated voltage AC: 700 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 10 x 10 x 38 mm
- Weight: 0.6 kg/100
- Material: Porcelain
- Halogen free: Yes
- Approval: UL file: E180276, UL category (for USA): JFHR2 https://www.ul.com
Frequently Asked Questions
Is this fuse link suitable for DC applications?
No, the Cylindrical Fuse Link 4 A (31207) is rated for AC voltage up to 700 V and is not specified for DC use.
What does the "gR" operation classification mean?
The "gR" classification indicates that this fuse link provides full-range protection for both overload and short-circuit conditions.
Does this fuse link carry current directly?
No, as a mechanical fuse link, it does not carry current itself but acts as a protective element within the fuse holder.
Is the product environmentally friendly?
Yes, the fuse link is halogen free, supporting environmentally responsible electrical installations.
Where can I find technical documentation and CAD data?
Technical information and CAD data are available via the provided download links and manufacturer resources.
| Manufacturer Part Number | 31207 |
|---|---|
| Barcode | 4021267312077 |
| Height | 10mm |
| Width | 10mm |
| Depth | 38mm |
| Alternative Product SKU | 31207000 |
| Manufacturer | Wohner |
| Packed Quantity | 10 |
