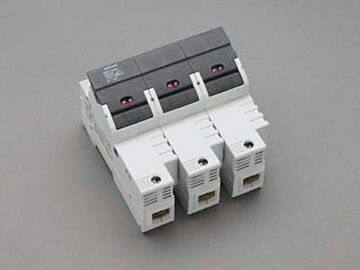

31143 Wohner holder for cylindrical fuses, with LED
MPN: 31143
Alt. SKU: 31143000
Special Price
£99.95
£83.29
Regular Price
£124.93
Why Choose the Holder for Cylindrical Fuses with LED (31143)?
The holder for cylindrical fuses with LED indication offers reliable fuse protection combined with clear visual status feedback. Designed for mounting on rails, it supports a wide clamping range and is suitable for panel installations. This product is halogen-free, ensuring safer environmental impact and compliance with modern safety standards. Its approvals from UL, CSA, and CCC guarantee high quality and safety for industrial electrical applications.
Key Benefits
- Integrated LED indication for quick identification of tripped fuse links
- Wide clamping range for versatile fuse compatibility
- Suitable for mounting rail installation, simplifying assembly
- Halogen-free construction for enhanced environmental safety
- Comprehensive approvals including UL, CSA, and CCC for assured compliance
- Supports rated currents up to 80 A and voltages up to 600 V AC/DC
Technical Specifications
- Item number: 31143
- Description: holder for cylindrical fuses, with LED
- Rated current: 80 A
- Rated voltage AC: 600 V
- Rated voltage DC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 108 x 115 x 69 mm
- Weight: 48.7 kg/100
- Halogen free: Yes
- Approval: UL 4248-1
- Approval: CSA , UL , CCC
- Approval: for UL feeder circuits >250V
- Approval: type number: AES22x58
- Approval: UL file: E230163, UL category (for USA): IZLT https://www.ul.com
- Approval: UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 6225-01 https://directories.csa-international.org
- Approval: CCC certificate: 2012010302584095
Frequently Asked Questions
Does this fuse holder carry current?
This holder is a mechanical component designed to securely hold cylindrical fuses and does not carry current itself.
What does the LED indication signify?
The integrated LED lights up to indicate when a fuse link has tripped, providing a clear visual alert for maintenance.
Is the product suitable for panel mounting?
Yes, the holder is designed specifically for mounting on a rail within panels, facilitating easy installation.
Is the product environmentally friendly?
Yes, it is halogen-free, reducing harmful emissions in case of fire and supporting environmental safety.
What approvals does this product have?
The holder is approved by UL, CSA, and CCC, meeting stringent safety and quality standards.
| Manufacturer Part Number | 31143 |
|---|---|
| Barcode | 4021267311438 |
| Height | 115mm |
| Width | 108mm |
| Depth | 69mm |
| Alternative Product SKU | 31143000 |
| Manufacturer | Wohner |
| Packed Quantity | 2 |
