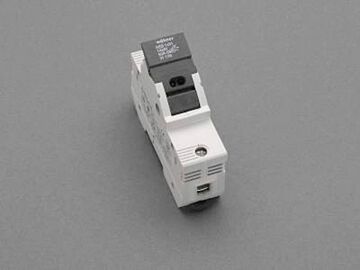

31135 Wohner holder for cylindrical fuses, with LED
MPN: 31135
Alt. SKU: 31135000
Special Price
£25.57
£21.31
Regular Price
£31.97
Why Choose the Holder for Cylindrical Fuses with LED (31135)?
This holder is designed for cylindrical fuses sized 14 x 51 mm and supports a rated current of 50 A with voltage ratings up to 600 V AC and DC. It features an integrated LED indicator that signals a tripped fuse link, enhancing safety and ease of maintenance. Suitable for mounting on rails, this holder offers a large clamping range and includes a label holder for clear identification. Its design supports any polarity for DC voltage, making it versatile for various electrical panel applications. The product is halogen free and complies with multiple international approvals, ensuring reliable and safe operation.
Key Benefits
- Integrated LED indication for quick identification of tripped fuses
- Large clamping range for secure fuse installation
- Label holder included for easy marking and identification
- Compatible with any polarity for DC voltage applications
- Halogen free construction for environmental safety
- Approved by UL, CSA, and CCC for international compliance
- Designed for mounting on standard mounting rails
Technical Specifications
- Item number: 31135
- Description: holder for cylindrical fuses, with LED
- Rated current: 50 A
- Rated voltage AC: 600 V
- Rated voltage DC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 27 x 90 x 69 mm
- Weight: 9.8 kg/100
- Halogen free: Yes
- Approval: UL 4248-1
- Approval: CSA , UL , CCC
- Approval: for UL feeder circuits >250V
- Approval: type number: AES14x51
- Approval: UL file: E230163, UL category (for USA): IZLT https://www.ul.com
- Approval: UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 6225-01 https://directories.csa-international.org
- Approval: CCC certificate: 2012010302584095
Frequently Asked Questions
What type of fuses does this holder support?
This holder is designed for cylindrical fuses measuring 14 x 51 mm.
Does the holder indicate when a fuse has tripped?
Yes, it features an integrated LED that lights up to indicate a tripped fuse link.
Can this holder be used for DC voltage applications?
Yes, it supports any polarity for DC voltage up to 600 V.
Is the holder suitable for mounting on standard rails?
Yes, it is designed for mounting on standard mounting rails.
Does this holder carry current?
This is a mechanical holder designed to hold fuses and does not carry current itself.
| Manufacturer Part Number | 31135 |
|---|---|
| Barcode | 4021267311353 |
| Height | 90mm |
| Width | 27mm |
| Depth | 69mm |
| Alternative Product SKU | 31135000 |
| Manufacturer | Wohner |
| Packed Quantity | 6 |
