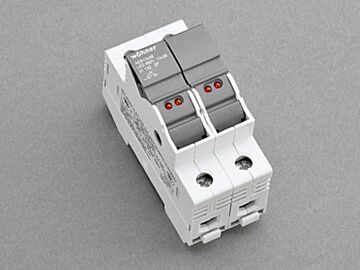

31132 Wohner holder for cylindrical fuses, with LED
MPN: 31132
Alt. SKU: 31132000
Special Price
£18.46
£15.38
Regular Price
£23.06
Why Choose the Holder for Cylindrical Fuses with LED (31132)?
The 31132 fuse holder is designed for reliable and safe mounting of 10 x 38 mm cylindrical fuses on mounting rails. Featuring an integrated LED indicator, it provides clear visual status of fuse operation, signalling a tripped fuse link promptly. This product is halogen free and complies with multiple international approvals, ensuring high safety and environmental standards. Its large clamping range and label holder enhance ease of installation and identification in panel systems.
Key Benefits
- Integrated LED indication for quick and clear detection of blown fuses.
- Suitable for 10 x 38 mm cylindrical fuses with a rated current of 30 A.
- Wide voltage compatibility: 600 V AC and DC, suitable for various industrial applications.
- Designed for mounting rail installation, simplifying panel assembly.
- Halogen free construction supports environmentally responsible installations.
- Large clamping range ensures secure fuse retention and reliable operation.
- Includes a holder for labels to facilitate easy identification and maintenance.
- Complies with UL, CSA, and CCC certifications for international safety standards.
Technical Specifications
- Item number: 31132
- Description: holder for cylindrical fuses, with LED
- Rated current: 30 A
- Rated voltage AC: 600 V
- Rated voltage DC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 36 x 81 x 58 mm
- Weight: 11.3 kg/100
- Halogen free: Yes
- Approval: UL 4248-1
- Approval: for UL feeder circuits >250V
- Approval: type number: AES10x38
- Approval: UL file: E230163, UL category (for USA): IZLT https://www.ul.com
- Approval: UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 6225-01 https://directories.csa-international.org
- Approval: CCC certificate: 2012010302581751
Frequently Asked Questions
Does this fuse holder carry current?
No, the holder itself is a mechanical component designed to securely hold the fuse and provide LED indication; it does not carry current directly.
What type of fuses are compatible with this holder?
This holder is compatible with cylindrical fuses sized 10 x 38 mm.
Is the LED indicator powered externally?
The LED is integrated to indicate the status of the fuse link and is powered as part of the fuse circuit.
Can this holder be mounted on standard mounting rails?
Yes, it is designed specifically for mounting rail installation.
Is this product suitable for use in environments requiring halogen-free components?
Yes, the holder is halogen free, making it suitable for environmentally sensitive applications.
| Manufacturer Part Number | 31132 |
|---|---|
| Barcode | 4021267311322 |
| Height | 81mm |
| Width | 36mm |
| Depth | 58mm |
| Alternative Product SKU | 31132000 |
| Manufacturer | Wohner |
| Packed Quantity | 6 |
