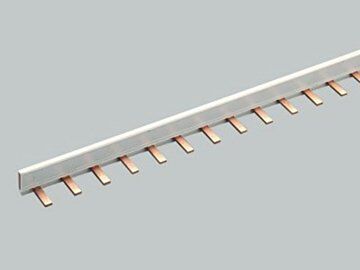

31101 Wohner comb-type busbar, 1-pole, bridge type, pitch 18 mm
MPN: 31101
Alt. SKU: 31101000A
Special Price
£20.30
£16.92
Regular Price
£25.38
Why Choose the Comb-Type Busbar 31101?
The comb-type busbar 31101 is a reliable mechanical component designed for efficient electrical distribution systems. Featuring a 1-pole, bridge type design with an 18 mm pitch, it offers precise spacing for seamless integration. Its 1-metre length and 16 mm² cross-section make it suitable for various industrial applications. Additionally, this busbar is halogen free, ensuring safer use in sensitive environments. As a mechanical product, it does not carry current itself but serves as a robust structural element within electrical assemblies.
Key Benefits
- Durable mechanical construction for long-lasting performance
- Standard 18 mm pitch for compatibility with common electrical components
- Halogen free material enhances safety and environmental compliance
- Lightweight design at 21.8 kg per 100 pieces simplifies handling and installation
- No certification required under CCC approval, easing procurement
- Comprehensive technical documentation and CAD models available for precise planning
Technical Specifications
- Item number: 31101
- Description: comb-type busbar, 1-pole, bridge type, pitch 18 mm
- Dimensions (W x H x D): 1000 x 5 x 15 mm
- Weight: 21.8 kg/100
- Halogen free: Yes
- Approval: CCC approval: no certification required
Frequently Asked Questions
Does this busbar carry electrical current?
No, the comb-type busbar 31101 is a mechanical component and does not carry electrical current itself. It is used to support and connect electrical components within a system.
Is the busbar suitable for hazardous environments?
Yes, it is halogen free, which reduces the risk of toxic gas emissions in case of fire, making it safer for use in sensitive or hazardous environments.
What documentation is available for this product?
Various technical documents, including general technical information, CAD models in multiple formats, dimensioned drawings, and EU declarations of conformity, are available for download.
Is certification required for this product?
No certification is required under CCC approval for this busbar, simplifying compliance and procurement processes.
| Manufacturer Part Number | 31101 |
|---|---|
| Barcode | 4021267311018 |
| Height | 5mm |
| Width | 1000mm |
| Depth | 15mm |
| Alternative Product SKU | 31101000A |
| Manufacturer | Wohner |
| Packed Quantity | 25 |
| Number of Poles | 1 pole |
| Type of electric connection | Pin |
| Rated permanent current Iu | 80A |
| Insulated | Yes |
| Number of phases | 1 phase |
| Cross section | 16 |
| Rated surge voltage | 4kV |
| Max. rated operation voltage Ue | 690V |
| Module width | 18mm |
