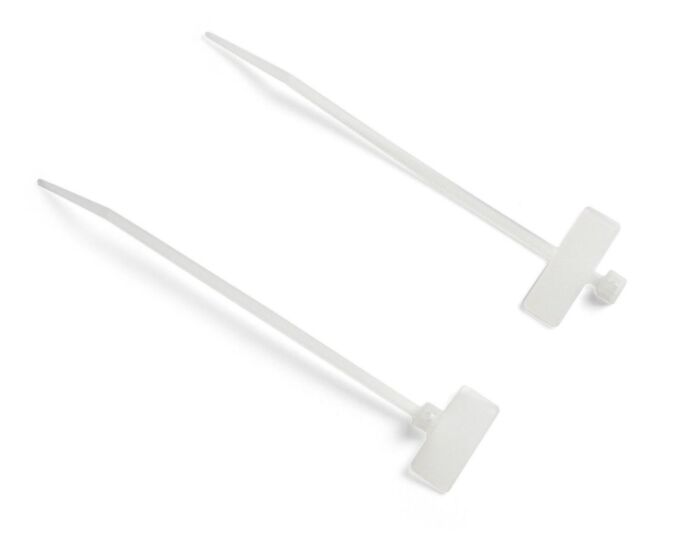

3042805 Cembre GFHT112X2.5 (NATURAL) PA6.6 CABLE TIE
MPN: 3042805
Alt. SKU: GFHT112X2.5
£0.0738
£0.0615
3042805 Cembre GFHT112X2.5 (NATURAL) PA6.6 CABLE TIE is available to buy in increments of 100
Why Choose the GFHT112x2.5 PA6.6 Cable Tie (3042805)?
The GFHT112x2.5 cable tie (Part Number: 3042805) is a reliable and robust solution for securing cables and wires in a variety of professional electrical and industrial applications. Constructed from high-quality, halogen-free PA6.6 polyamide, these cable ties offer excellent tensile strength, temperature resistance, and compliance with industry standards, making them ideal for demanding environments.
Key Features
- Durable PA6.6 construction for long-lasting performance
- Halogen-free material for enhanced safety
- Wide operating temperature range (-40°C to 85°C, with short-term tolerance up to 120°C)
- UL 94 V2 flammability rating
- ROHS compliant
- Signaling surface for easy identification
- Available in convenient bag and box packaging options
Technical Specifications
- Part Number: 3042805
- Cat Number: GFHT112X2.5
- Material: Polyamide PA6.6
- Width: 2.5 mm
- Length: 112 mm
- Clamping Diameter Range: Up to 18 mm
- Minimum Operating Temperature: -40°C
- Maximum Operating Temperature: 85°C
- Short-Term Temperature Tolerance: 120°C
- Minimum Seal: 8.1 N
- Flammability Rating: UL 94 V2
- Halogen-Free: Yes
- ROHS Compliant: Yes
- Electrocode: 3640
- ETIM Class 7: Cable tie [EC000046]
- Customs Code: 39269097
- Packaging: Bag/Box
- Units per Minimal Package: 100 pcs
- Units per Standard Package: 14,000 pcs
- Gross Weight: 0.614 g (per tie)
Applications
- Panel building
- Industrial control systems
- Cable management in electrical installations
- Maintenance and repair operations
- Applications requiring halogen-free components
Frequently Asked Questions
What makes this product special?
This product meets strict RoHS compliance and is made from robust, halogen-free PA6.6 material, ensuring reliability and safety in demanding environments. The wide operating temperature range and UL 94 V2 flammability rating further enhance its suitability for professional electrical and industrial applications.
What is the temperature range of this cable tie?
The GFHT112x2.5 cable tie operates effectively between -40°C and 85°C. It can also withstand temperatures up to 120°C for short periods.
| Manufacturer | Cembre |
|---|---|
| Manufacturer Part Number | 3042805 |
| Country of Manufacture | Thailand |
| HS Code | 39269097 |
| Alternative Product SKU | GFHT112X2.5 |
| Barcode | 8016692572116 |
| Packed Quantity | 100 |
