3017352 Cembre FD9 FLAT SEALING RING

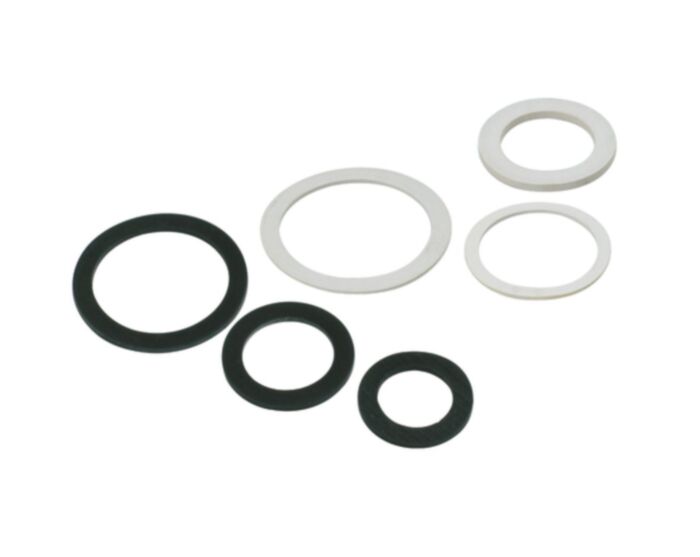

FD9 Neoprene Flat Sealing Ring (3017352) - 20mm OD, 13.9mm ID, 1.2mm Thick

Why Choose the FD9 Flat Sealing Ring?

The FD9 flat sealing ring (part number 3017352) provides a reliable and durable sealing solution for a wide range of electrical applications. Constructed from high-quality neoprene, this ring offers excellent resistance to oils, weathering, and temperature fluctuations, ensuring long-lasting performance in demanding industrial environments. Its precise dimensions and robust construction make it ideal for panel building, electrical enclosures, and other applications where a secure and compliant seal is critical.

Key Features

• Durable neoprene construction for resistance to oils and weathering
• Wide operating temperature range: -25°C to 100°C
• Compliant with relevant industry standards (ETIM Class 7: EC001181)
• Precise dimensions for a secure and reliable seal: 20mm OD, 13.9mm ID, 1.2mm Thick
• Available in convenient packaging options for efficient inventory management

Technical Specifications

• Part Number/SKU: 3017352
• Material: Neoprene
• Shore Hardness: 80 Shore A
• Color: Black (RAL 9005)
• Minimum Operating Temperature: -25°C
• Maximum Operating Temperature: 100°C
• Elongation at Break: 100%
• Outer Diameter (ØE): 20mm
• Inner Diameter (ØI): 13.9mm
• Thickness (H): 1.2mm
• Customs Code: 40169300
• ETIM Class 7: Sealing ring [EC001181]

Applications

• Electrical enclosures
• Panel building
• Industrial maintenance and repair
• Applications requiring a reliable environmental seal
