3012116 Cembre 2911.11N Pg MAXIBRASS CABLE GLAND

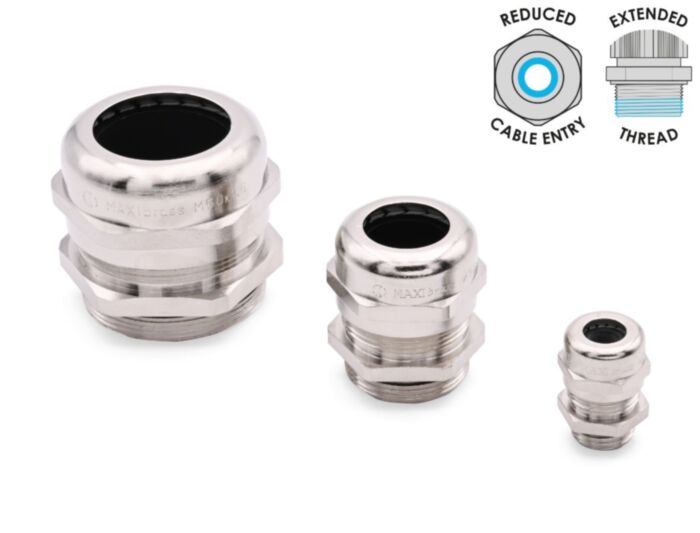

MAXIBRASS CABLE GLAND - Cembre (2911.11N): Industrial-grade performance for demanding applications

MAXIBRASS 2900 series cable glands enable the safe tightening and sealing of through-hole cables on electrical installation panels, preventing them from shearing and deforming as a result of mechanical traction. They are made of brass and, thanks to the nickel-plating process, are more durable and resistant to wear, weathering and chemical corrosion. They are designed to provide a high level of IP68 protection against infiltration by external bodies and high-pressure water jets. These cable glands feature a Pg-type thread, according to DIN 40 430, to ensure efficient clamping between the cable shielding and the housing. They come in different diameters and with various mounting thread sizes and lengths to meet all application requirements. Locknuts, locknuts with collars, enlargers, reductions, caps, seals and multi-hole gaskets complete the series, adapting the cable glands to any use.

Key Features

• MAXIBRASS 2900 series cable glands enable the safe tightening and sealing of through-hole cables on electrical installation panels, preventing them from shearing and deforming as a result of mechanical traction
• They are made of brass and, thanks to the nickel-plating process, are more durable and resistant to wear, weathering and chemical corrosion. They are designed to provide a high level of IP68 protection against infiltration by external bodies and high-pressure water jets. These cable glands feature a Pg-type thread, according to DIN 40 430, to ensure efficient clamping between the cable shielding and the housing. They come in different diameters and with various mounting thread sizes and lengths to meet all application requirements. Locknuts, locknuts with collars, enlargers, reductions, caps, seals and multi-hole gaskets complete the series, adapting the cable glands to any use

Technical Specifications

• tipo: Pg11
• P: 6.25
• Tightening torque [nm]: 2.5 ÷ 7
• Range of cable housing diameter [mm]: 20
• B1 [mm]: 20
• B2 [mm]: 12
• C [mm]: 20 ÷ 25
• L [mm]: 18.8
• ØF [mm]: 22.5
• Width: 100
• Unit in minimal packaging [pce]: 100

Applications

• Industrial panels and switchgear
• Machine and equipment labelling
• Control cabinets and facilities

Frequently Asked Questions

• What is this product used for? MAXIBRASS CABLE GLAND - Cembre is used for its intended application in industrial and commercial panels, controls and assemblies. It helps installers achieve reliable, repeatable results with minimal rework.
• Is it compatible with common standards? Yes. It is designed to meet or support widely used industry requirements where applicable. Always check the technical table and datasheet for specific approvals.
• What else do I need to install it correctly? Refer to the technical table for sizing and accessory requirements. Use appropriate tools, conductor sizes and torque values recommended by the manufacturer.
