3001565 Cembre 1910.21 Pg MAXIBLOCK CABLE GLAND

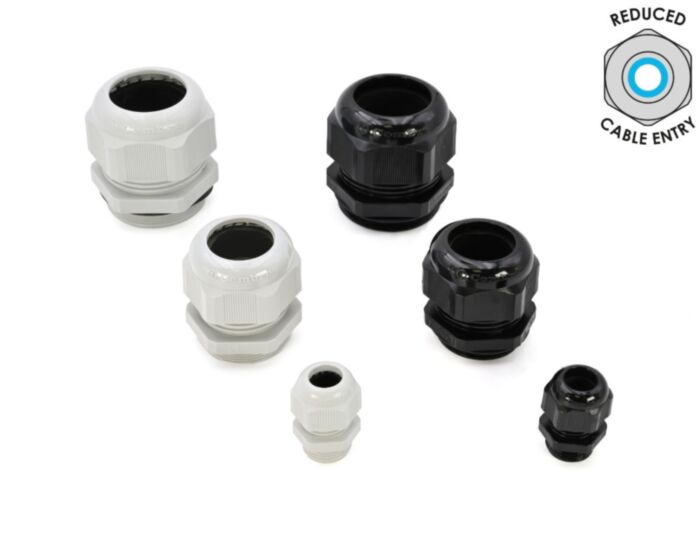

MAXIBLOCK CABLE GLAND - Cembre (1910.21): Industrial-grade performance for demanding applications

MAXIBLOCK 1900 series cable glands allow you to safely clamp and seal through-hole cables on electrical installation panels, preventing them from shearing and deforming as a result of mechanical traction. They are made of PA 6.6 nylon to maintain an excellent degree of durability and wear resistance. They are designed to provide a high level of IP68 protection against external body ingress and high-pressure water jets. These cable glands feature M 1.5 metric type threads, according to CEI EN 60423 and CEI EN 62444, and Pg type threads, according to DIN 40 430, to ensure efficient clamping between the cable shielding and the housing under all circumstances. They come in different diameters and with various mounting thread sizes and lengths to meet every application need. They are available in black RAL 9005, gray RAL 7035 and dark gray RAL 7001 to meet different aesthetic requirements. Locknuts, locknuts with collars, enlargers, reductions, caps, seals and multi-hole gaskets complete the series by adapting the cable glands to any use

Key Features

• MAXIBLOCK 1900 series cable glands allow you to safely clamp and seal through-hole cables on electrical installation panels, preventing them from shearing and deforming as a result of mechanical traction
• They are made of PA 6.6 nylon to maintain an excellent degree of durability and wear resistance. They are designed to provide a high level of IP68 protection against external body ingress and high-pressure water jets. These cable glands feature M 1.5 metric type threads, according to CEI EN 60423 and CEI EN 62444, and Pg type threads, according to DIN 40 430, to ensure efficient clamping between the cable shielding and the housing under all circumstances. They come in different diameters and with various mounting thread sizes and lengths to meet every application need. They are available in black RAL 9005, gray RAL 7035 and dark gray RAL 7001 to meet different aesthetic requirements. Locknuts, locknuts with collars, enlargers, reductions, caps, seals and multi-hole gaskets complete the series by adapting the cable glands to any use

Technical Specifications

• tipo: Pg21
• P: Yes
• External seal: Grey
• Colour: Neoprene
• Outer seal material: 7.5
• Tightening torque [nm]: 9 ÷ 15
• Range of cable housing diameter [mm]: 33
• B1 [mm]: 33
• B2 [mm]: 12
• C [mm]: 30 ÷ 35
• L [mm]: 28.5
• ØF [mm]: 36.5
• Width: 50
• Unit in minimal packaging [pce]: 50
• Unit in standard packaging [pce]: 514B

Applications

• Industrial panels and switchgear
• Machine and equipment labelling
• Control cabinets and facilities

Frequently Asked Questions

• What is this product used for? MAXIBLOCK CABLE GLAND - Cembre is used for its intended application in industrial and commercial panels, controls and assemblies. It helps installers achieve reliable, repeatable results with minimal rework.
• Is it compatible with common standards? Yes. It is designed to meet or support widely used industry requirements where applicable. Always check the technical table and datasheet for specific approvals.
• What else do I need to install it correctly? Refer to the technical table for sizing and accessory requirements. Use appropriate tools, conductor sizes and torque values recommended by the manufacturer.
