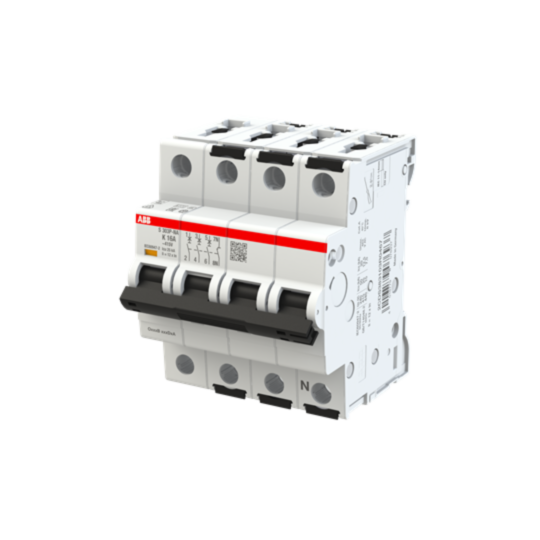

2CDS383103R0467 ABB S303P-K16NA Miniature Circuit Breaker - 3+NP - K - 16 A
MPN: 2CDS383103R0467
Alt. SKU: S303P-K16NA
Special Price
£112.88
£94.07
Regular Price
£205.25
This product replaces this item:
Why Choose the S303P-K16NA [2CDS383103R0467]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity: 25 kA at 415 V AC and 400 V; 15 kA at 440 V AC.
- Voltage Rating: Maximum operating voltage 480Y/277 V AC, 125 V DC.
- Contact Configuration: 3 poles + neutral (3P+N), neutral terminals positioned on the right.
- Terminal Type and Capacity: Screw terminals; busbar 10/10 mm²; flexible 0.75–25 mm²; rigid and stranded 0.75–35 mm².
- Insulation Material: Insulation Group II, black, sealable actuator.
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Tightening Torque: 2.8 N·m (18 in·lb for UL/CSA).
- Contact Position Indication: Red ON / Green OFF.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity is 25 kA at 415 V AC and 400 V; 15 kA at 440 V AC.
What is the maximum operating voltage for this product?
The maximum operating voltage is 480Y/277 V AC and 125 V DC.
What are the terminal types and their capacities?
The MCB features screw terminals with a busbar capacity of 10/10 mm², flexible capacity of 0.75–25 mm², and rigid/stranded capacity of 0.75–35 mm².
How is the contact configuration arranged?
The contact configuration is 3 poles + neutral (3P+N), with neutral terminals positioned on the right.
What is the mechanical and electrical endurance of the MCB?
The MCB has a mechanical and electrical endurance of 20,000 cycles each.
What standards does the MCB comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS383103R0467 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779076937 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 3 Pole + N |
| Amperage | 16A |
| Alternative Product SKU | S303P-K16NA |
