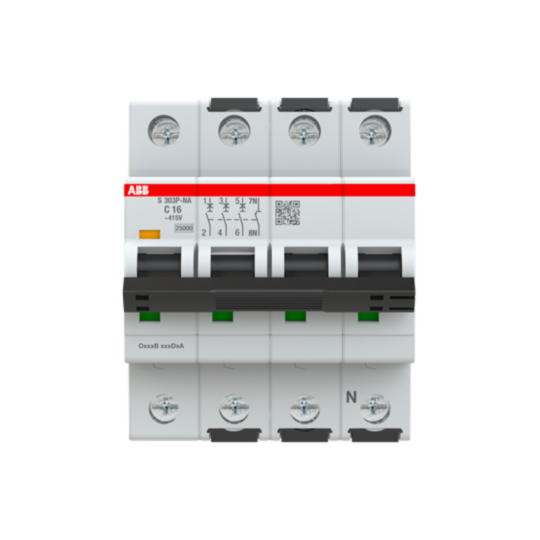

2CDS383103R0164 ABB S303P-C16NA Miniature Circuit Breaker - 3+NP - C - 16 A
MPN: 2CDS383103R0164
Alt. SKU: S303P-C16NA
Special Price
£83.51
£69.59
Regular Price
£151.84
This product replaces this item:
Why Choose the S303P-C16NA [2CDS383103R0164]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Rated Voltage: Up to 480Y/277 V AC, 125 V DC.
- Breaking Capacity: 25 kA (415 V AC and 400 V), 15 kA (440 V AC), 10 kA UL/CSA rating at 125 V DC and 480Y/277 V AC.
- Contact Configuration: 3 poles + neutral (3P+N).
- Terminal Type: Screw terminals; failsafe bi-directional cylinder-lift.
- Connecting Capacity: Flexible up to 25 mm², rigid and stranded up to 35 mm², busbar 10/10 mm².
- Mechanical Endurance: 20,000 operating cycles.
- Electrical Endurance: 20,000 AC cycles.
- Actuator: Toggle type with I/O marking, sealable, black insulating material.
- Wire Stripping Length: 14 mm.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated voltage for the MCBs S300P series?
The rated voltage is up to 480Y/277 V AC and 125 V DC.
What is the breaking capacity of the MCBs S300P series?
The breaking capacity is 25 kA at 415 V AC and 400 V, 15 kA at 440 V AC, and 10 kA for UL/CSA rating at 125 V DC and 480Y/277 V AC.
What is the contact configuration of the MCBs S300P series?
The contact configuration is 3 poles plus neutral (3P+N).
What is the maximum cable capacity for the MCBs S300P series?
The connecting capacity is flexible up to 25 mm², and rigid and stranded up to 35 mm². Busbar capacity is 10/10 mm².
What type of terminals does the MCBs S300P series use?
The MCBs S300P series uses screw terminals with a failsafe bi-directional cylinder-lift.
What standards does the MCBs S300P series comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS383103R0164 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779077255 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 3 Pole + N |
| Amperage | 16A |
| Alternative Product SKU | S303P-C16NA |
