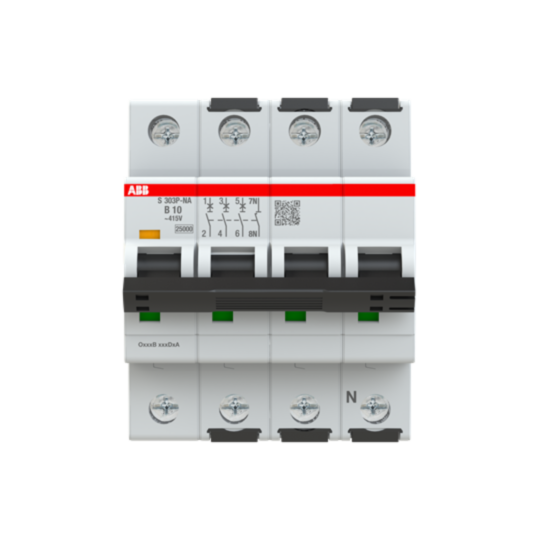

2CDS383103R0105 ABB S303P-B10NA Miniature Circuit Breaker - 3+NP - B - 10 A
MPN: 2CDS383103R0105
Alt. SKU: S303P-B10NA
Special Price
£82.51
£68.76
Regular Price
£150.02
This product replaces this item:
Why Choose the S303P-B10NA [2CDS383103R0105]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Voltage Ratings: Maximum operating voltage 480Y/277 V AC, 125 V DC.
- Current Breaking Capacity: 25 kA at 415 V AC, 15 kA at 440 V AC.
- Contact Configuration: 3 poles + neutral (3P+N) with right neutral terminal.
- Terminal Type: Screw terminals with failsafe bi-directional cylinder-lift design.
- Connecting Capacity: Flexible 0.75 to 25 mm², rigid up to 35 mm², busbar 10/10 mm².
- Insulation and Impulse Rating: Dielectric test voltage 2 kV at 50/60 Hz for 1 minute.
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Actuator: Toggle type, black insulation group II, sealable with I/O marking.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What are the voltage ratings for the MCBs S300P series?
The maximum operating voltage is 480Y/277 V AC and 125 V DC.
What is the current breaking capacity of the MCBs S300P series?
The breaking capacity is 25 kA at 415 V AC and 15 kA at 440 V AC.
What type of terminal does the MCBs S300P series use?
It features screw terminals with a failsafe bi-directional cylinder-lift design.
What is the connecting capacity for cables?
The connecting capacity is flexible 0.75 to 25 mm², rigid up to 35 mm², and busbar 10/10 mm².
What is the mechanical and electrical endurance of the MCBs S300P series?
The product has a mechanical and electrical endurance of 20,000 cycles each.
Is there any conformity information available for the MCBs S300P series?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS383103R0105 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779077330 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 3 Pole + N |
| Amperage | 10A |
| Alternative Product SKU | S303P-B10NA |
