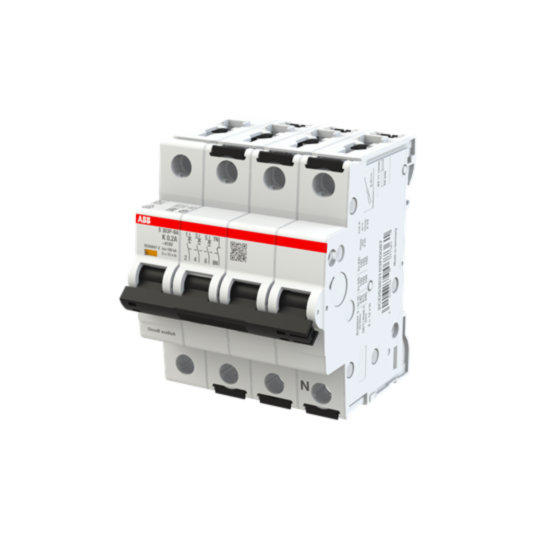

2CDS383103R0087 ABB S303P-K0.2NA Miniature Circuit Breaker - 3+NP - K - 0.2 A
MPN: 2CDS383103R0087
Alt. SKU: S303P-K0.2NA
Special Price
£158.05
£131.71
Regular Price
£287.36
This product replaces this item:
Why Choose the S303P-K0.2NA [2CDS383103R0087]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Overload and short circuit protection for industrial installations.
- Voltage Ratings: 400 V AC / 415 V AC / 440 V AC; DC rating 72 V.
- Current Breaking Capacity: 100 kA (AC), 25 kA (DC).
- Contact Configuration: 3 poles + neutral (3P+N), contact position indication red ON / green OFF.
- Terminal Type: Failsafe bi-directional cylinder-lift screw terminals.
- Connecting Capacity: Busbar 10 mm², flexible 0.75–25 mm², rigid 0.75–35 mm².
- Electrical Endurance: 20,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Tightening Torque: 2.8 N·m (18 in·lbf UL/CSA).
- Actuator: Toggle type, black insulation group II, sealable.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides overload and short circuit protection for industrial installations.
What are the voltage ratings for this product?
The voltage ratings are 400 V AC, 415 V AC, 440 V AC, and a DC rating of 72 V.
What is the current breaking capacity of the MCBs S300P series?
The current breaking capacity is 100 kA for AC and 25 kA for DC.
What type of terminal does the MCBs S300P series use?
It features failsafe bi-directional cylinder-lift screw terminals.
What is the maximum connecting capacity for busbars and flexible/rigid cables?
The connecting capacity is 10 mm² for busbars, 0.75–25 mm² for flexible cables, and 0.75–35 mm² for rigid cables.
What is the electrical endurance of the MCBs S300P series?
The electrical endurance is rated at 20,000 AC cycles.
Is there any conformity information available for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS383103R0087 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779077361 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 3 Pole + N |
| Amperage | 0.2A |
| Alternative Product SKU | S303P-K0.2NA |
