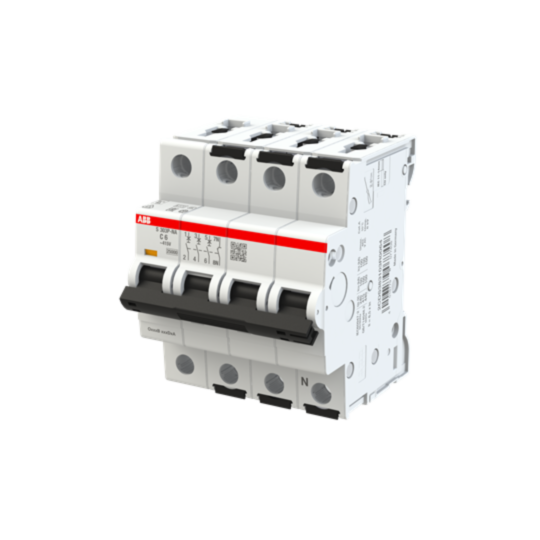

2CDS383103R0064 ABB S303P-C6NA Miniature Circuit Breaker - 3+NP - C - 6 A
MPN: 2CDS383103R0064
Alt. SKU: S303P-C6NA
Special Price
£96.01
£80.01
Regular Price
£174.56
This product replaces this item:
Why Choose the S303P-C6NA [2CDS383103R0064]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits for industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity (Icu): 100 kA at 400 V AC, 415 V AC, 440 V AC; 25 kA at 72 V DC.
- Rated Service Short-Circuit Breaking Capacity (Ics): 100 kA at 400 V AC and 440 V AC.
- Number of Poles: 3P+N with neutral terminal on right.
- Maximum Operating Voltage (UL/CSA): 480Y/277 V AC, 125 V DC.
- Terminal Type and Size: Screw terminals; flexible 0.75–25 mm², rigid 0.75–35 mm², busbar 10/10 mm².
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Electrical Endurance: 20,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Contact Position Indication: Red ON / Green OFF.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity of this product?
The rated ultimate short-circuit breaking capacity (Icu) is 100 kA at 400 V AC, 415 V AC, and 440 V AC; 25 kA at 72 V DC.
What is the maximum operating voltage for the MCBs S300P series?
The maximum operating voltage is 480Y/277 V AC and 125 V DC.
What are the terminal types and sizes for this MCB?
The MCB features screw terminals with flexible sizes of 0.75–25 mm², rigid sizes of 0.75–35 mm², and busbar sizes of 10/10 mm².
How many poles does the MCBs S300P series have?
This product has a configuration of 3 poles plus a neutral terminal on the right.
What are the electrical and mechanical endurance ratings for the MCB?
The electrical endurance is rated for 20,000 AC cycles, while the mechanical endurance is also rated for 20,000 cycles.
Is the MCB compliant with any standards?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS383103R0064 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779077408 |
| Product Image | For Illustration Purposes Only |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 3 Pole + N |
| Amperage | 6A |
| Alternative Product SKU | S303P-C6NA |
