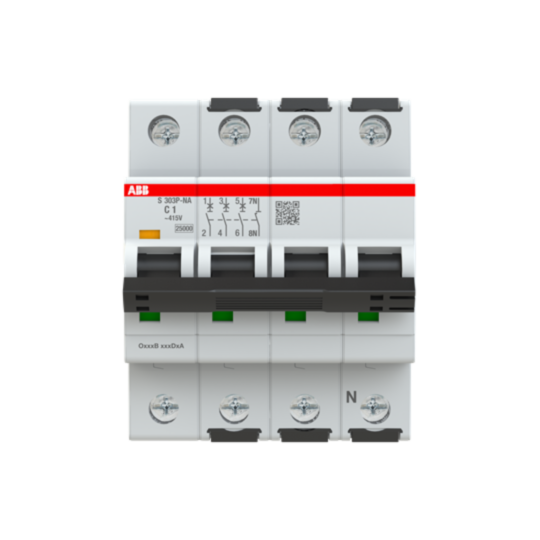

2CDS383103R0014 ABB S303P-C1NA Miniature Circuit Breaker - 3+NP - C - 1 A
MPN: 2CDS383103R0014
Alt. SKU: S303P-C1NA
Special Price
£116.92
£97.43
Regular Price
£212.57
This product replaces this item:
Why Choose the S303P-C1NA [2CDS383103R0014]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Provides overload and short circuit protection for industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity: 100 kA at 400 V, 415 V, and 440 V AC; 25 kA at 72 V DC.
- Contact Configuration: 3 poles plus neutral (3P+N) with contact position indication (Red ON / Green OFF).
- Maximum Operating Voltage: 480Y/277 V AC and 125 V DC (UL/CSA rated).
- Terminal Type: Screw terminals, failsafe bi-directional cylinder-lift type.
- Connecting Capacity: Busbar 10/10 mm²; flexible 0.75–25 mm²; rigid 0.75–35 mm² conductors.
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Installation Size: According to DIN 43880, size 1.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides overload and short circuit protection for industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity is 100 kA at 400 V, 415 V, and 440 V AC; 25 kA at 72 V DC.
What is the maximum operating voltage for this product?
The maximum operating voltage is 480Y/277 V AC and 125 V DC (UL/CSA rated).
What types of conductors can be connected to the MCBs S300P?
The connecting capacity includes busbar 10/10 mm²; flexible conductors from 0.75 to 25 mm²; and rigid conductors from 0.75 to 35 mm².
How many mechanical and electrical cycles can the MCBs S300P endure?
The MCBs S300P can endure 20,000 mechanical and electrical cycles each.
What is the installation size of the MCBs S300P?
The installation size is according to DIN 43880, size 1.
What standards does the MCBs S300P series conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS383103R0014 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779077484 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Number of Poles | 3 Pole + N |
| Amperage | 1A |
| Alternative Product SKU | S303P-C1NA |
