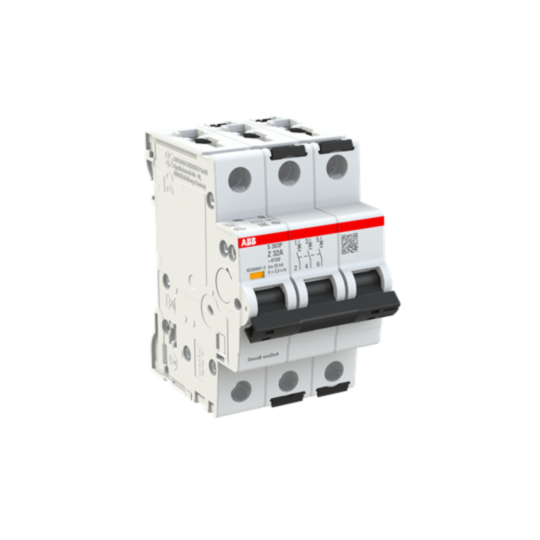

2CDS383001R0538 ABB S303P-Z32 Miniature Circuit Breaker - 3P - Z - 32 A
MPN: 2CDS383001R0538
Alt. SKU: S303P-Z32
Special Price
£129.41
£107.84
Regular Price
£235.28
This product replaces this item:
Why Choose the S303P-Z32 [2CDS383001R0538]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity: 25 kA at 415 V AC, 15 kA at 440 V AC.
- Number of Poles: 3-pole (3P) configuration.
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Terminal Type & Capacity: Failsafe bi-directional cylinder-lift screw terminals; flexible wiring 0.75–25 mm², rigid wiring up to 35 mm².
- Electrical Endurance: 10,000 AC cycles; Mechanical Endurance: 20,000 cycles.
- Tightening Torque: 2.8 N·m (18 in·lb for UL/CSA).
- Actuator: Toggle with red ON/green OFF position indication and sealable insulation.
- Maximum Operating Voltage: 480Y/277 V AC and 125 V DC.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity is 25 kA at 415 V AC and 15 kA at 440 V AC.
What is the terminal capacity for wiring?
The terminal capacity allows flexible wiring from 0.75 to 25 mm² and rigid wiring up to 35 mm².
How many poles does the MCBs S300P series have?
The MCBs S300P series features a 3-pole (3P) configuration.
What is the maximum operating voltage for this product?
The maximum operating voltage is 480Y/277 V AC and 125 V DC.
What are the mechanical and electrical endurance ratings?
The electrical endurance is rated for 10,000 AC cycles, while the mechanical endurance is rated for 20,000 cycles.
Is there any conformity information available?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS383001R0538 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779077637 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 32A |
| Alternative Product SKU | S303P-Z32 |
