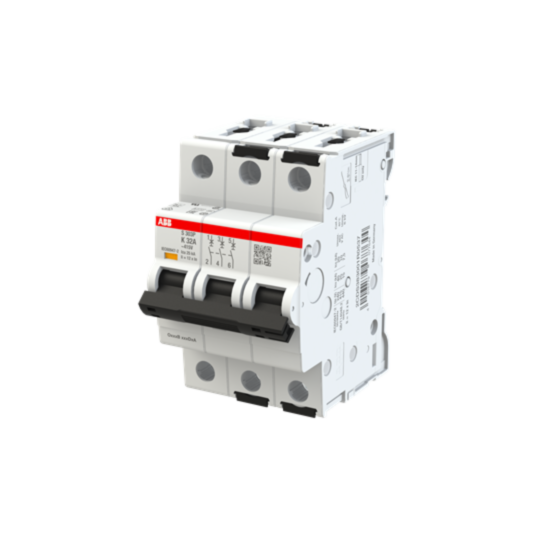

2CDS383001R0537 ABB S303P-K32 Miniature Circuit Breaker - 3P - K - 32 A
MPN: 2CDS383001R0537
Alt. SKU: S303P-K32
Special Price
£120.14
£100.12
Regular Price
£218.44
This product replaces this item:
Why Choose the S303P-K32 [2CDS383001R0537]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity: 25 kA at 415 V AC / 15 kA at 440 V AC / 25 kA at 400 V.
- Number of Poles: 3P, protecting 3 poles.
- Electrical Endurance: 10,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Terminal Type: Screw terminals with failsafe bi-directional cylinder-lift design.
- Connecting Capacity: Flexible 0.75–25 mm², rigid 0.75–35 mm², busbar 10/10 mm².
- Tightening Torque: 2.8 N·m (18 in·lb UL/CSA).
- Contact Position Indication: Red ON / Green OFF.
- Insulation Material: Group II, black, sealable actuator.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the main function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity is 25 kA at 415 V AC, 15 kA at 440 V AC, and 25 kA at 400 V.
How many poles does the MCBs S300P series have?
The MCBs S300P series has 3 poles, protecting 3 phases.
What is the cable capacity for connections?
The connecting capacity is flexible 0.75–25 mm², rigid 0.75–35 mm², and busbar 10/10 mm².
What type of terminals does the MCBs S300P series use?
The MCBs S300P series uses screw terminals with a failsafe bi-directional cylinder-lift design.
What is the electrical endurance of the MCBs S300P series?
The electrical endurance is rated for 10,000 AC cycles.
Is there any conformity information available for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS383001R0537 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779077644 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 32A |
| Alternative Product SKU | S303P-K32 |
