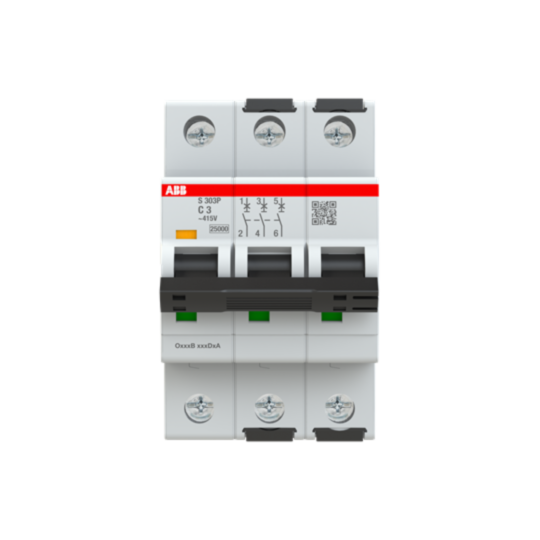

2CDS383001R0034 ABB S303P-C3 Miniature Circuit Breaker - 3P - C - 3 A
MPN: 2CDS383001R0034
Alt. SKU: S303P-C3
Special Price
£99.54
£82.95
Regular Price
£180.97
This product replaces this item:
Why Choose the S303P-C3 [2CDS383001R0034]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity (Icu): 100 kA at 400 V AC, 415 V AC, 440 V AC; 25 kA at 72 V DC.
- Poles: 3-pole (3P) configuration.
- Contact Position Indication: Red ON / Green OFF.
- Insulation & Dielectric Strength: Dielectric test voltage 2 kV at 50/60 Hz for 1 min.
- Terminal Type and Capacity: Screw terminals; accommodates flexible cables 0.75 to 25 mm², rigid cables 0.75 to 35 mm², busbar 10x10 mm².
- Mechanical & Electrical Endurance: 20,000 cycles each.
- Tightening Torque: 2.8 N·m (18 in·lb for UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity of this product?
The rated ultimate short-circuit breaking capacity (Icu) is 100 kA at 400 V AC, 415 V AC, and 440 V AC; 25 kA at 72 V DC.
How many poles does the MCBs S300P series have?
This series features a 3-pole (3P) configuration.
What types of cables can be accommodated by the terminals?
The screw terminals can accommodate flexible cables from 0.75 to 25 mm², rigid cables from 0.75 to 35 mm², and busbars of 10x10 mm².
What is the tightening torque for the terminals?
The tightening torque is 2.8 N·m (18 in·lb for UL/CSA).
What is the mechanical and electrical endurance of the MCBs S300P series?
The product has a mechanical and electrical endurance of 20,000 cycles each.
What standards does the MCBs S300P series comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS383001R0034 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779078245 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 3A |
| Alternative Product SKU | S303P-C3 |
