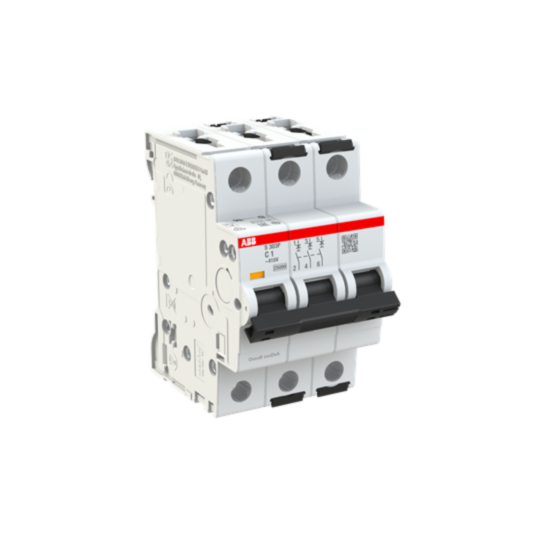

2CDS383001R0014 ABB S303P-C1 Miniature Circuit Breaker - 3P - C - 1 A
MPN: 2CDS383001R0014
Alt. SKU: S303P-C1
Special Price
£95.71
£79.76
Regular Price
£174.01
This product replaces this item:
Why Choose the S303P-C1 [2CDS383001R0014]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity: 100 kA at 400 V AC to 440 V AC, 25 kA at 72 V DC.
- Number of Poles: 3 poles (3P).
- Electrical Endurance: 20,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Terminal Type and Capacity: Screw terminals supporting busbar 10/10 mm², flexible conductors 0.75 to 25 mm², rigid 0.75 to 35 mm².
- Contact Position Indication: Red ON / Green OFF.
- Tightening Torque: 2.8 N·m (18 in·lb UL/CSA).
- Dielectric Test Voltage: 2 kV, 50/60 Hz for 1 min.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity is 100 kA at 400 V AC to 440 V AC and 25 kA at 72 V DC.
How many poles does the MCBs S300P series have?
The MCBs S300P series has 3 poles (3P).
What is the terminal capacity for the MCBs S300P series?
The screw terminals support busbar 10/10 mm², flexible conductors from 0.75 to 25 mm², and rigid conductors from 0.75 to 35 mm².
What is the tightening torque for the terminals?
The tightening torque is 2.8 N·m (18 in·lb UL/CSA).
What are the electrical and mechanical endurance ratings?
The electrical endurance is rated for 20,000 AC cycles, and the mechanical endurance is also rated for 20,000 cycles.
What standards does the MCBs S300P series conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS383001R0014 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779078283 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Number of Poles | 3 Pole |
| Amperage | 1A |
| Alternative Product SKU | S303P-C1 |
