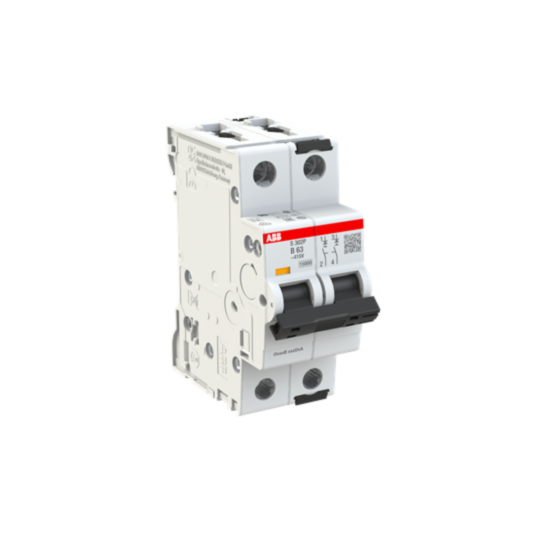

2CDS382001R0635 ABB S302P-B63 Miniature Circuit Breaker - 2P - B - 63 A
MPN: 2CDS382001R0635
Alt. SKU: S302P-B63
Special Price
£68.92
£57.43
Regular Price
£125.30
This product replaces this item:
Why Choose the S302P-B63 [2CDS382001R0635]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuit in industrial installations.
- Voltage Ratings: Up to 440 V AC and 125 V DC.
- Current Rating: 63 A.
- Contact Configuration: 2 poles (2P) with red ON / green OFF indication.
- Breaking Capacity: 25 kA at 415 V AC; 15 kA at 440 V AC; 25 kA at 125 V DC.
- Terminal Type: Screw terminals, bi-directional cylinder-lift type.
- Connecting Capacity: Flexible 0.75–25 mm², rigid 0.75–35 mm², busbar 10/10 mm².
- Mechanical Endurance: 20,000 cycles.
- Electrical Endurance: 10,000 AC cycles.
- Actuator Type: Toggle with sealable black insulation material.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What are the voltage ratings for the MCBs S300P series?
The voltage ratings are up to 440 V AC and 125 V DC.
What is the current rating of the MCBs S300P series?
The current rating is 63 A.
What is the breaking capacity of the MCBs S300P series?
The breaking capacity is 25 kA at 415 V AC, 15 kA at 440 V AC, and 25 kA at 125 V DC.
What type of terminals does the MCBs S300P series use?
The MCBs S300P series features screw terminals, bi-directional cylinder-lift type.
What is the connecting capacity for cables with the MCBs S300P series?
The connecting capacity is flexible 0.75–25 mm², rigid 0.75–35 mm², and busbar 10/10 mm².
What is the mechanical endurance of the MCBs S300P series?
The mechanical endurance is rated at 20,000 cycles.
| Manufacturer Part Number | 2CDS382001R0635 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779078344 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 2 Pole |
| Amperage | 63A |
| Alternative Product SKU | S302P-B63 |
