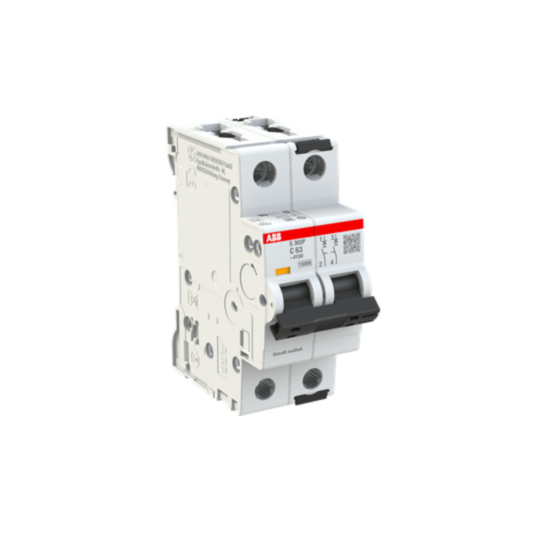

2CDS382001R0634 ABB S302P-C63 Miniature Circuit Breaker - 2P - C - 63 A
MPN: 2CDS382001R0634
Alt. SKU: S302P-C63
Special Price
£69.73
£58.11
Regular Price
£126.79
This product replaces this item:
Why Choose the S302P-C63 [2CDS382001R0634]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuit in industrial installations.
- Voltage Ratings: 125 V DC, 400 V AC, 415 V AC, 440 V AC.
- Short-Circuit Breaking Capacity: Up to 25 kA rated ultimate (Icu) at 400/415 V AC.
- Contact Configuration: 2 poles (2P), contact position indication Red ON / Green OFF.
- Insulation and Dielectric Strength: Dielectric test voltage 2 kV at 50/60 Hz for 1 minute.
- Terminal Type and Size Range: Screw terminals, 0.75–35 mm² (flexible and rigid); busbar 10/10 mm².
- Mechanical and Electrical Endurance: 20,000 mechanical cycles; 10,000 electrical AC cycles.
- Actuator Type and Material: Toggle, black insulation group II, sealable.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What are the voltage ratings for the MCBs S300P series?
The voltage ratings are 125 V DC, 400 V AC, 415 V AC, and 440 V AC.
What is the short-circuit breaking capacity of this product?
The short-circuit breaking capacity is up to 25 kA rated ultimate (Icu) at 400/415 V AC.
What type of terminals does the MCBs S300P series use?
It uses screw terminals with a size range of 0.75–35 mm² for flexible and rigid cables, and a busbar size of 10/10 mm².
How many mechanical and electrical cycles can the MCBs S300P series endure?
The MCBs can endure 20,000 mechanical cycles and 10,000 electrical AC cycles.
What is the insulation and dielectric strength of the MCBs S300P series?
The dielectric test voltage is 2 kV at 50/60 Hz for 1 minute.
Is there any conformity information available for the MCBs S300P series?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS382001R0634 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779078351 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 2 Pole |
| Amperage | 63A |
| Alternative Product SKU | S302P-C63 |
