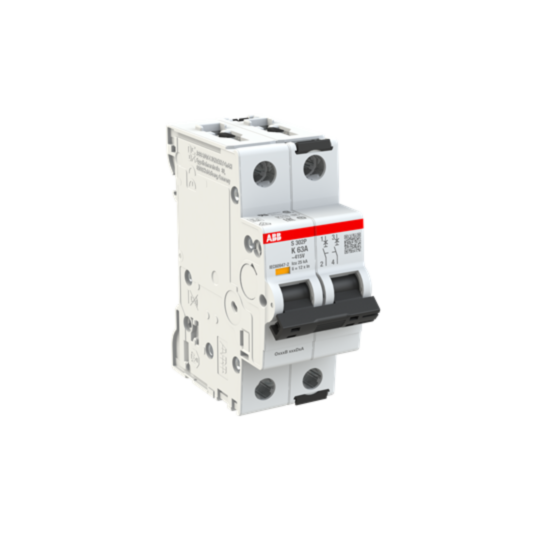

2CDS382001R0607 ABB S302P-K63 Miniature Circuit Breaker - 2P - K - 63 A
MPN: 2CDS382001R0607
Alt. SKU: S302P-K63
Special Price
£94.28
£78.57
Regular Price
£171.43
This product replaces this item:
Why Choose the S302P-K63 [2CDS382001R0607]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Overload and short circuit protection for industrial installations.
- Rated Voltage: 125 V DC, 400/415 V AC, 440 V AC.
- Rated Ultimate Short-Circuit Breaking Capacity: 25 kA (125 V DC, 400/415 V AC), 15 kA (440 V AC).
- Contact Configuration: 2 poles (2P) with red ON / green OFF indication.
- Terminal Type: Failsafe bi-directional cylinder-lift screw terminals.
- Connecting Capacity: Flexible 0.75–25 mm², rigid 0.75–35 mm², busbar 10/10 mm².
- Electrical Endurance: 10,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Tightening Torque: 2.8 N·m (standard), 18 in·lbf (UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides overload and short circuit protection for industrial installations.
What are the rated voltages for the MCBs S300P series?
The rated voltages are 125 V DC, 400/415 V AC, and 440 V AC.
What is the rated ultimate short-circuit breaking capacity?
The breaking capacity is 25 kA for 125 V DC and 400/415 V AC, and 15 kA for 440 V AC.
What is the connecting capacity for cables?
The connecting capacity is flexible 0.75–25 mm², rigid 0.75–35 mm², and busbar 10/10 mm².
What type of terminals does the MCBs S300P series use?
It uses failsafe bi-directional cylinder-lift screw terminals.
What is the electrical endurance of the MCBs S300P series?
The electrical endurance is rated for 10,000 AC cycles.
Is there any conformity information available for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS382001R0607 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779078382 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 2 Pole |
| Amperage | 63A |
| Alternative Product SKU | S302P-K63 |
