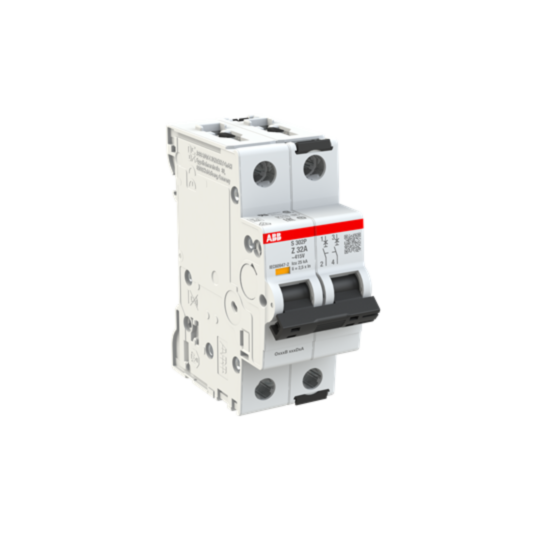

2CDS382001R0538 ABB S302P-Z32 Miniature Circuit Breaker - 2P - Z - 32 A
MPN: 2CDS382001R0538
Alt. SKU: S302P-Z32
Special Price
£81.88
£68.23
Regular Price
£148.87
This product replaces this item:
Why Choose the S302P-Z32 [2CDS382001R0538]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Voltage Ratings: 125 V DC, 400/415 V AC, 440 V AC.
- Breaking Capacity (Icu): Up to 25 kA (415 V AC and 125 V DC), 15 kA (440 V AC).
- Poles: 2P with protection on 2 poles.
- Terminal Type and Size: Screw terminals; accepts flexible 0.75–25 mm², rigid up to 35 mm², busbar 10 × 10 mm².
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Mechanical Endurance: 20,000 cycles.
- Electrical Endurance: 10,000 AC cycles.
- Tightening Torque: 2.8 N·m (18 in·lb UL/CSA).
- Contact Position Indication: Red ON / Green OFF.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What are the voltage ratings for the MCBs S300P series?
The voltage ratings are 125 V DC, 400/415 V AC, and 440 V AC.
What is the breaking capacity of the MCBs S300P series?
The breaking capacity is up to 25 kA for 415 V AC and 125 V DC, and 15 kA for 440 V AC.
What is the terminal type and size for the MCBs S300P series?
The MCBs S300P series features screw terminals that accept flexible conductors from 0.75–25 mm², rigid conductors up to 35 mm², and busbars of 10 × 10 mm².
What is the mechanical and electrical endurance of the MCBs S300P series?
The mechanical endurance is 20,000 cycles, while the electrical endurance is 10,000 AC cycles.
What is the tightening torque for the MCBs S300P series?
The tightening torque is 2.8 N·m (18 in·lb UL/CSA).
Is the MCBs S300P series compliant with any standards?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS382001R0538 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779078436 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 2 Pole |
| Amperage | 32A |
| Alternative Product SKU | S302P-Z32 |
