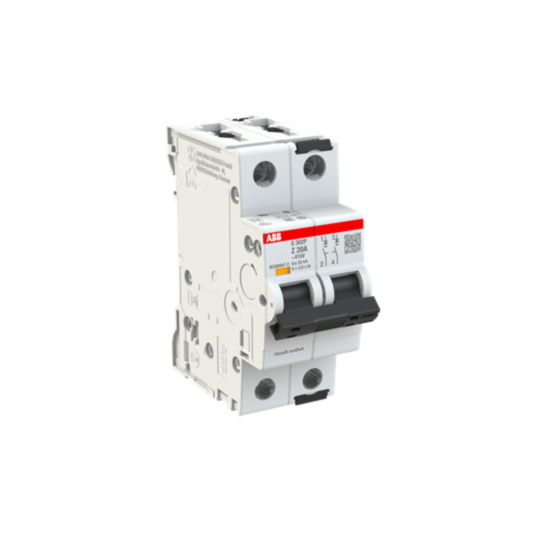

2CDS382001R0488 ABB S302P-Z20 Miniature Circuit Breaker - 2P - Z - 20 A
MPN: 2CDS382001R0488
Alt. SKU: S302P-Z20
Special Price
£75.32
£62.77
Regular Price
£136.94
This product replaces this item:
Why Choose the S302P-Z20 [2CDS382001R0488]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Rated Voltage: Up to 480Y/277 V AC and 125 V DC.
- Breaking Capacity (Icu): 25 kA at 415 V AC, 15 kA at 440 V AC, 25 kA at 125 V DC.
- Poles: 2 poles (2P) with protected poles: 2.
- Terminal Type and Connection Capacity: Screw terminals; flexible 0.75–25 mm², rigid 0.75–35 mm², busbar 10/10 mm².
- Contact Position Indication: Red ON / Green OFF.
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Tightening Torque: 2.8 N·m (18 in·lb UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated voltage for this product?
The rated voltage is up to 480Y/277 V AC and 125 V DC.
What is the breaking capacity of the MCBs S300P series?
The breaking capacity is 25 kA at 415 V AC, 15 kA at 440 V AC, and 25 kA at 125 V DC.
What is the terminal type and connection capacity?
The product features screw terminals with a connection capacity of flexible 0.75–25 mm², rigid 0.75–35 mm², and busbar 10/10 mm².
How many poles does the MCBs S300P series have?
The MCBs S300P series has 2 poles (2P) with protected poles.
What is the tightening torque for this product?
The tightening torque is 2.8 N·m (18 in·lb UL/CSA).
What standards does the MCBs S300P series conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS382001R0488 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779078504 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 2 Pole |
| Amperage | 20A |
| Alternative Product SKU | S302P-Z20 |
