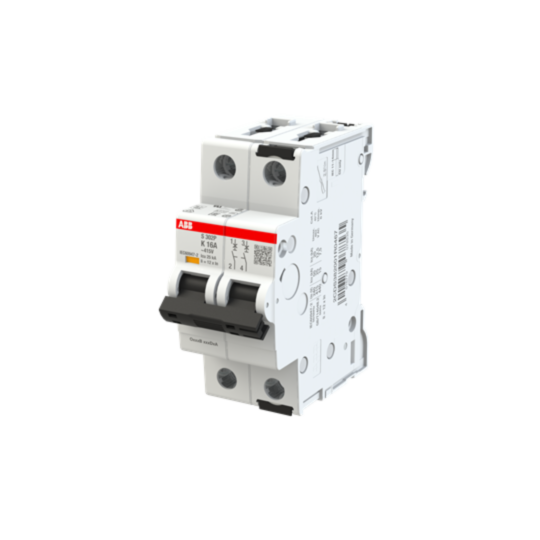

2CDS382001R0467 ABB S302P-K16 Miniature Circuit Breaker - 2P - K - 16 A
MPN: 2CDS382001R0467
Alt. SKU: S302P-K16
Special Price
£60.80
£50.67
Regular Price
£110.56
This product replaces this item:
Why Choose the S302P-K16 [2CDS382001R0467]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Rated Voltage: 125 V DC, 415 V AC, 440 V AC, 400 V AC.
- Breaking Capacity (Icu): Up to 25 kA for AC voltages, 25 kA for 125 V DC.
- Number of Poles: 2P (Two poles).
- Contact Position Indication: Red for ON, Green for OFF.
- Terminal Type: Screw terminals, suitable for flexible and rigid conductors 0.75–35 mm².
- Mechanical Endurance: 20,000 cycles.
- Electrical Endurance: 20,000 AC cycles.
- Tightening Torque: 2.8 N·m (18 in·lb UL/CSA).
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What are the rated voltages for the MCBs S300P series?
The rated voltages are 125 V DC, 415 V AC, 440 V AC, and 400 V AC.
What is the breaking capacity of the MCBs S300P series?
The breaking capacity is up to 25 kA for AC voltages and 25 kA for 125 V DC.
How many poles does the MCBs S300P series have?
The MCBs S300P series has 2 poles (2P).
What type of terminals does the MCBs S300P series use?
It uses screw terminals suitable for flexible and rigid conductors ranging from 0.75 to 35 mm².
What is the mechanical endurance of the MCBs S300P series?
The mechanical endurance is rated for 20,000 cycles.
What standards does the MCBs S300P series conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS382001R0467 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779078535 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 2 Pole |
| Amperage | 16A |
| Alternative Product SKU | S302P-K16 |
