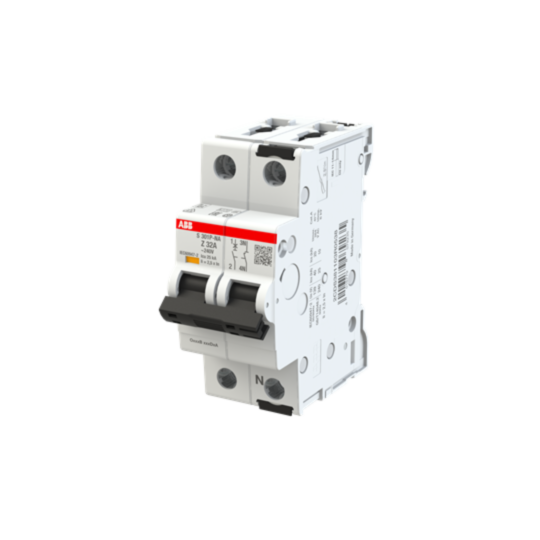

2CDS381103R0538 ABB S301P-Z32NA Miniature Circuit Breaker - 1+NP - Z - 32 A
MPN: 2CDS381103R0538
Alt. SKU: S301P-Z32NA
Special Price
£72.41
£60.34
Regular Price
£131.64
This product replaces this item:
Why Choose the S301P-Z32NA [2CDS381103R0538]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Voltage Rating: Maximum operating voltage 480Y/277 V AC (UL/CSA).
- Current Breaking Capacity: Rated ultimate short-circuit breaking capacity 25 kA at 240 V AC, 72 V DC, and 230 V; service short-circuit breaking capacity 10 kA at 240 V AC and 72 V DC.
- Contact Configuration: 1P+N with red ON/green OFF indication.
- Terminal Type and Capacity: Screw terminals for busbar 10/10 mm²; flexible cables 0.75 to 25 mm²; rigid and stranded cables 0.75 to 35 mm².
- Mechanical Endurance: 20,000 cycles.
- Electrical Endurance: 10,000 AC cycles.
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Actuator Type: Toggle with I/O marking, black insulated and sealable.
- Tightening Torque: 2.8 N·m (18 in·lb UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the maximum operating voltage for this product?
The maximum operating voltage is 480Y/277 V AC (UL/CSA).
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity is 25 kA at 240 V AC, 72 V DC, and 230 V.
What types of cables can be used with the MCBs S300P series?
It accommodates flexible cables from 0.75 to 25 mm² and rigid/stranded cables from 0.75 to 35 mm².
What is the mechanical endurance of the MCBs S300P series?
The mechanical endurance is rated at 20,000 cycles.
What is the tightening torque for the terminals?
The tightening torque is 2.8 N·m (18 in·lb UL/CSA).
Is the MCBs S300P series compliant with any standards?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381103R0538 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779079235 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole + N |
| Amperage | 32A |
| Alternative Product SKU | S301P-Z32NA |
