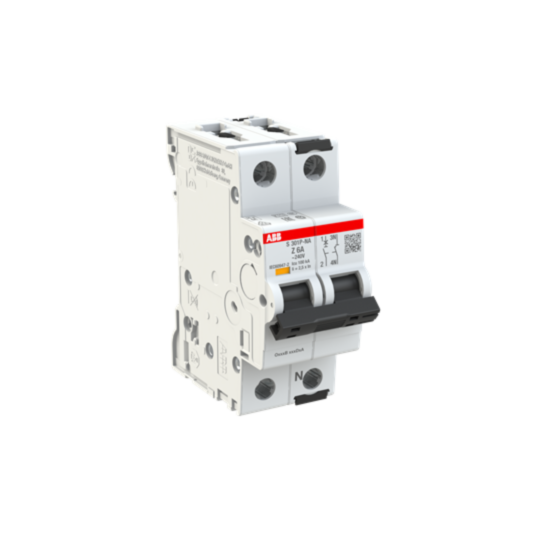

2CDS381103R0378 ABB S301P-Z6NA Miniature Circuit Breaker - 1+NP - Z - 6 A
MPN: 2CDS381103R0378
Alt. SKU: S301P-Z6NA
Special Price
£64.04
£53.37
Regular Price
£116.44
Why Choose the S301P-Z6NA [2CDS381103R0378]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Rated Voltage: 230 V AC / 240 V AC / 72 V DC.
- Short-Circuit Breaking Capacity: 100 kA (Icu and Ics at 230 V AC, 240 V AC, 72 V DC).
- Contact Configuration: 1 pole + neutral (1P+N) with right side neutral terminal.
- Insulation & Dielectric Strength: Dielectric test voltage 2 kV (50/60 Hz, 1 min).
- Terminal Type: Screw terminals with failsafe bi-directional cylinder-lift design.
- Connection Capacity: Flexible cables 0.75–25 mm², rigid cables 0.75–35 mm², busbar 10/10 mm².
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Operating Voltage UL/CSA: 480Y/277 V AC.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated voltage for this product?
The rated voltage is 230 V AC / 240 V AC / 72 V DC.
What is the short-circuit breaking capacity of the MCBs S300P?
The short-circuit breaking capacity is 100 kA at 230 V AC, 240 V AC, and 72 V DC.
What type of terminal does the MCBs S300P series use?
The MCBs S300P series features screw terminals with a failsafe bi-directional cylinder-lift design.
What is the connection capacity for cables?
The connection capacity is 0.75–25 mm² for flexible cables and 0.75–35 mm² for rigid cables, with busbar capacity of 10/10 mm².
What is the mechanical and electrical endurance of the MCBs S300P?
The mechanical and electrical endurance is rated for 20,000 cycles each.
What standards does the MCBs S300P series comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381103R0378 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779079426 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole + N |
| Amperage | 6A |
| Alternative Product SKU | S301P-Z6NA |
