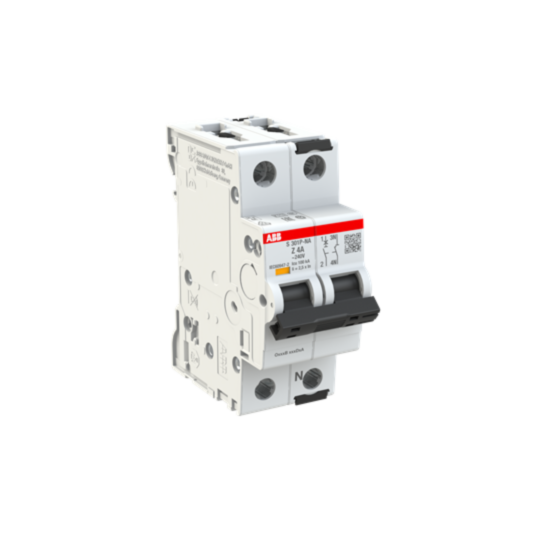

2CDS381103R0338 ABB S301P-Z4NA Miniature Circuit Breaker - 1+NP - Z - 4 A
MPN: 2CDS381103R0338
Alt. SKU: S301P-Z4NA
Special Price
£72.41
£60.34
Regular Price
£131.64
Why Choose the S301P-Z4NA [2CDS381103R0338]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Rated Voltage: Up to 480Y/277 V AC.
- Short-Circuit Breaking Capacity: 100 kA (230/240 V AC, 72 V DC).
- Contact Configuration: 1 Pole + Neutral (1P+N).
- Insulation & Dielectric Test: 2 kV, 50/60 Hz for 1 minute.
- Terminal Type and Capacity: Screw terminals; flexible 0.75–25 mm², rigid up to 35 mm², busbar 10/10 mm².
- Mechanical Endurance: 20,000 cycles.
- Electrical Endurance: 20,000 AC cycles.
- Actuator: Toggle with red ON / green OFF indication, black insulation, sealable.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated voltage for the MCBs S300P series?
The rated voltage is up to 480Y/277 V AC.
What is the short-circuit breaking capacity of this product?
The short-circuit breaking capacity is 100 kA at 230/240 V AC and 72 V DC.
What type of terminals does the MCBs S300P series use?
It features screw terminals with a capacity for flexible cables of 0.75–25 mm², rigid cables up to 35 mm², and busbar of 10/10 mm².
How many mechanical and electrical endurance cycles can the MCBs S300P series handle?
It has a mechanical endurance of 20,000 cycles and an electrical endurance of 20,000 AC cycles.
What is the contact configuration of the MCBs S300P series?
The contact configuration is 1 Pole + Neutral (1P+N).
What standards does the MCBs S300P series conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381103R0338 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779079440 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole + N |
| Amperage | 4A |
| Alternative Product SKU | S301P-Z4NA |
