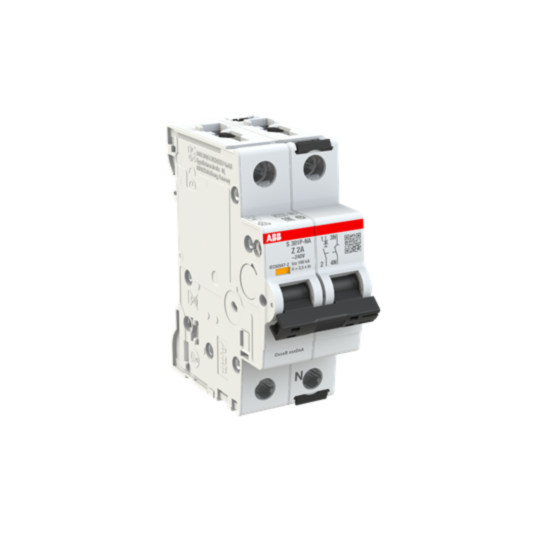

2CDS381103R0278 ABB S301P-Z2NA Miniature Circuit Breaker - 1+NP - Z - 2 A
MPN: 2CDS381103R0278
Alt. SKU: S301P-Z2NA
Special Price
£77.93
£64.94
Regular Price
£141.68
Why Choose the S301P-Z2NA [2CDS381103R0278]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity: 100 kA at 230 V AC, 240 V AC, and 72 V DC.
- Poles: 1P+N with neutral terminal on the right.
- Maximum Operating Voltage UL/CSA: 480Y/277 V AC.
- Terminal Type: Screw terminals, failsafe bi-directional cylinder-lift type.
- Connecting Capacity: Flexible 0.75–25 mm², rigid and stranded 0.75–35 mm², busbar 10/10 mm².
- Electrical Endurance: 20,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity is 100 kA at 230 V AC, 240 V AC, and 72 V DC.
What is the maximum operating voltage for this product?
The maximum operating voltage is 480Y/277 V AC for UL/CSA applications.
What types of terminals does the MCBs S300P series use?
It features screw terminals with a failsafe bi-directional cylinder-lift type.
What is the connecting capacity for cables?
The connecting capacity is flexible 0.75–25 mm², rigid and stranded 0.75–35 mm², and busbar 10/10 mm².
What are the electrical and mechanical endurance ratings?
The electrical endurance is rated for 20,000 AC cycles, and the mechanical endurance is also 20,000 cycles.
What is the dielectric test voltage for this product?
The dielectric test voltage is 2 kV at 50/60 Hz for 1 minute.
| Manufacturer Part Number | 2CDS381103R0278 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779079518 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole + N |
| Amperage | 2A |
| Alternative Product SKU | S301P-Z2NA |
