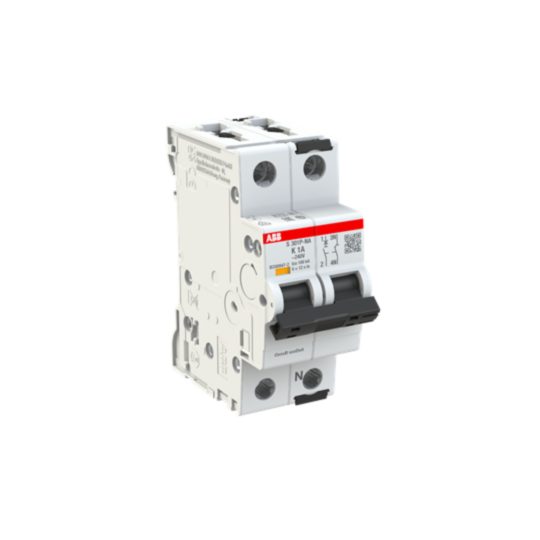

2CDS381103R0217 ABB S301P-K1NA Miniature Circuit Breaker - 1+NP - K - 1 A
MPN: 2CDS381103R0217
Alt. SKU: S301P-K1NA
Special Price
£69.61
£58.01
Regular Price
£126.58
Why Choose the S301P-K1NA [2CDS381103R0217]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Overload and short-circuit protection for industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity (Icu): 100 kA at 230 V AC, 240 V AC, and 72 V DC.
- Rated Service Short-Circuit Breaking Capacity (Ics): 100 kA at 230 V AC, 240 V AC, and 72 V DC.
- Contact Configuration: 1 pole + neutral (1P+N) with red ON / green OFF indication.
- Dielectric Test Voltage: 2 kV, 50/60 Hz, 1 minute.
- Terminal Type and Capacity: Screw terminals; flexible 0.75–25 mm², rigid 0.75–35 mm², busbar 10/10 mm².
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Actuator: Toggle type with I/O marking; insulation group II, black, sealable.
- Tightening Torque: 2.8 N·m (metric), 18 in·lb (UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the MCBs S300P series?
The MCBs S300P series provides overload and short-circuit protection for industrial installations.
What is the rated short-circuit breaking capacity of this product?
The rated ultimate and service short-circuit breaking capacity is 100 kA at 230 V AC, 240 V AC, and 72 V DC.
What is the terminal capacity for the MCBs S300P series?
The terminal type is screw terminals with a capacity of flexible 0.75–25 mm², rigid 0.75–35 mm², and busbar 10/10 mm².
How many cycles can the MCBs S300P series endure?
The mechanical and electrical endurance is rated for 20,000 cycles each.
What type of actuator does the MCBs S300P series use?
The actuator is a toggle type with I/O marking and is sealable.
What are the dielectric test voltage specifications?
The dielectric test voltage is 2 kV at 50/60 Hz for 1 minute.
Is the MCBs S300P series compliant with any standards?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381103R0217 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779079594 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Number of Poles | 1 Pole + N |
| Amperage | 1A |
| Alternative Product SKU | S301P-K1NA |
