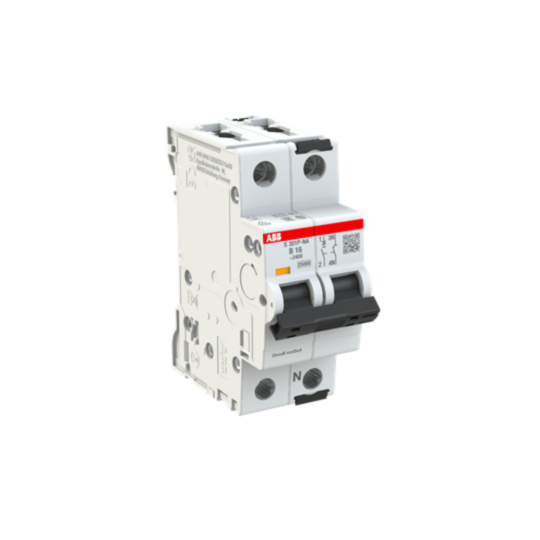

2CDS381103R0165 ABB S301P-B16NA Miniature Circuit Breaker - 1+NP - B - 16 A
MPN: 2CDS381103R0165
Alt. SKU: S301P-B16NA
Special Price
£36.30
£30.25
Regular Price
£66.00
Why Choose the S301P-B16NA [2CDS381103R0165]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits.
- Rated Ultimate Short-Circuit Breaking Capacity: 25 kA at 240 V AC / 230 V / 72 V DC.
- Rated Service Short-Circuit Breaking Capacity: 12.5 kA at 240 V AC / 72 V DC.
- Voltage Rating (UL/CSA): 480Y / 277 V AC maximum operating voltage.
- Contact Configuration: 1 Pole + Neutral (1P+N), with red ON / green OFF indication.
- Terminal Type and Capacity: Failsafe bi-directional screw terminals, suitable for 0.75 to 35 mm² cables and 10/10 mm² busbars.
- Mechanical Endurance: 20,000 cycles.
- Dielectric Test Voltage: 2 kV (50 / 60 Hz, 1 minute).
- Tightening Torque: 2.8 N·m (18 in·lb UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity is 25 kA at 240 V AC / 230 V / 72 V DC.
What is the maximum operating voltage for this product?
The maximum operating voltage is 480Y / 277 V AC.
What type of terminals does the MCBs S300P series use?
It features failsafe bi-directional screw terminals suitable for 0.75 to 35 mm² cables and 10/10 mm² busbars.
How many mechanical cycles can the MCBs S300P series endure?
The mechanical endurance is rated for 20,000 cycles.
What is the tightening torque for the terminals?
The tightening torque is 2.8 N·m (18 in·lb UL/CSA).
Is there any conformity information available for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381103R0165 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779079648 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Number of Poles | 1 Pole + N |
| Amperage | 16A |
| Alternative Product SKU | S301P-B16NA |
