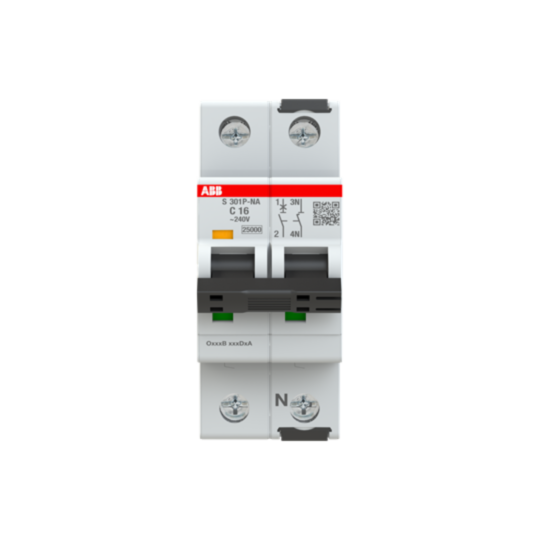

2CDS381103R0164 ABB S301P-C16NA Miniature Circuit Breaker - 1+NP - C - 16 A
MPN: 2CDS381103R0164
Alt. SKU: S301P-C16NA
Special Price
£39.77
£33.14
Regular Price
£72.30
Why Choose the S301P-C16NA [2CDS381103R0164]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits for industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity (Icu): 25 kA at 240 V AC, 72 V DC, and 230 V.
- Rated Service Short-Circuit Breaking Capacity (Ics): 12.5 kA at 240 V AC and 72 V DC.
- Contact Configuration: 1 Pole + Neutral (1P+N) with Red ON / Green OFF indication.
- Insulation and Dielectric Rating: Dielectric test voltage 2 kV at 50/60 Hz for 1 minute.
- Terminal Type and Capacity: Screw terminals; flexible 0.75–25 mm², rigid up to 35 mm², busbar 10/10 mm².
- Mechanical and Electrical Endurance: 20,000 AC cycles each.
- Maximum Operating Voltage (UL/CSA): 480Y/277 V AC.
- Tightening Torque: 2.8 N·m (18 in·lb UL/CSA).
- Actuator: Toggle type, black, sealable, marked I/O.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the main function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity (Icu) is 25 kA at 240 V AC, 72 V DC, and 230 V.
What is the maximum operating voltage for this product?
The maximum operating voltage is 480Y/277 V AC according to UL/CSA standards.
What type of terminals does the MCBs S300P series use?
It uses screw terminals with a capacity for flexible conductors of 0.75–25 mm² and rigid conductors up to 35 mm².
How many AC cycles can the MCBs S300P series endure?
The product can endure 20,000 mechanical and electrical AC cycles each.
What is the tightening torque for the terminals?
The tightening torque is 2.8 N·m (18 in·lb UL/CSA).
Is there any conformity information available for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381103R0164 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779079655 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole + N |
| Amperage | 16A |
| Alternative Product SKU | S301P-C16NA |
