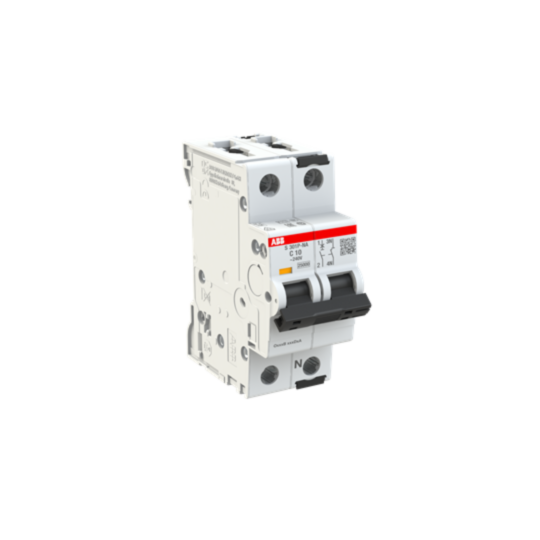

2CDS381103R0104 ABB S301P-C10NA Miniature Circuit Breaker - 1+NP - C - 10 A
MPN: 2CDS381103R0104
Alt. SKU: S301P-C10NA
Special Price
£39.77
£33.14
Regular Price
£72.30
Why Choose the S301P-C10NA [2CDS381103R0104]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuit in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity (Icu): 25 kA at 240 V AC, 72 V DC, and 230 V.
- Rated Service Short-Circuit Breaking Capacity (Ics): 12.5 kA at 240 V AC and 72 V DC.
- Contact Configuration: 1 Pole + Neutral (1P+N) with red ON / green OFF indication.
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Terminal Type and Capacity: Screw terminals; busbar 10/10 mm²; flexible 0.75–25 mm²; rigid and stranded 0.75–35 mm².
- Electrical Endurance: 20,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Actuator: Toggle type, black insulation group II, sealable with I/O marking.
- Tightening Torque: 2.8 N·m (standard), 18 in·lb (UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity (Icu) is 25 kA at 240 V AC, 72 V DC, and 230 V.
What is the terminal type and capacity for this product?
The MCB features screw terminals with a busbar capacity of 10/10 mm² and flexible cables from 0.75 to 25 mm², and rigid and stranded cables from 0.75 to 35 mm².
What is the electrical endurance of the MCBs S300P series?
The electrical endurance is rated for 20,000 AC cycles.
Can the actuator be sealed?
Yes, the actuator is toggle type and can be sealed with I/O marking.
What are the tightening torque specifications?
The standard tightening torque is 2.8 N·m (18 in·lb for UL/CSA).
Is the MCB compliant with any standards?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381103R0104 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779079747 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole + N |
| Amperage | 10A |
| Alternative Product SKU | S301P-C10NA |
