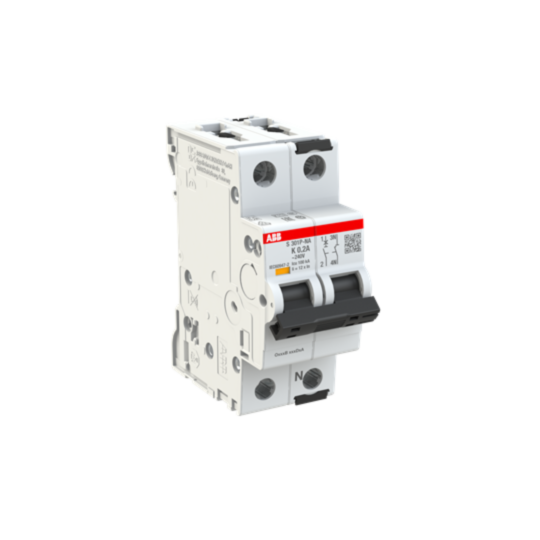

2CDS381103R0087 ABB S301P-K0.2NA Miniature Circuit Breaker - 1+NP - K - 0.2 A
MPN: 2CDS381103R0087
Alt. SKU: S301P-K0.2NA
Special Price
£72.41
£60.34
Regular Price
£131.64
Why Choose the S301P-K0.2NA [2CDS381103R0087]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuit in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity: 100 kA at 230/240 V AC and 72 V DC.
- Rated Service Short-Circuit Breaking Capacity: 100 kA at 230/240 V AC and 72 V DC.
- Operating Voltage: Up to 480Y/277 V AC (UL/CSA).
- Contact Configuration: 1P+N with neutral terminal on right.
- Terminal Type and Capacity: Screw terminals; flexible 0.75–25 mm², rigid 0.75–35 mm², busbar 10/10 mm².
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Actuator: Toggle type with red (ON) / green (OFF) indication, sealable black insulation.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity is 100 kA at 230/240 V AC and 72 V DC.
What is the maximum operating voltage for this product?
The maximum operating voltage is up to 480Y/277 V AC (UL/CSA).
What type of terminals does the MCBs S300P series use?
It uses screw terminals with a capacity for flexible cables of 0.75–25 mm² and rigid cables of 0.75–35 mm².
How many mechanical and electrical endurance cycles can this product handle?
The MCBs S300P series can handle 20,000 cycles for both mechanical and electrical endurance.
Is there any conformity information available for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381103R0087 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779079761 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole + N |
| Amperage | 0.2A |
| Alternative Product SKU | S301P-K0.2NA |
