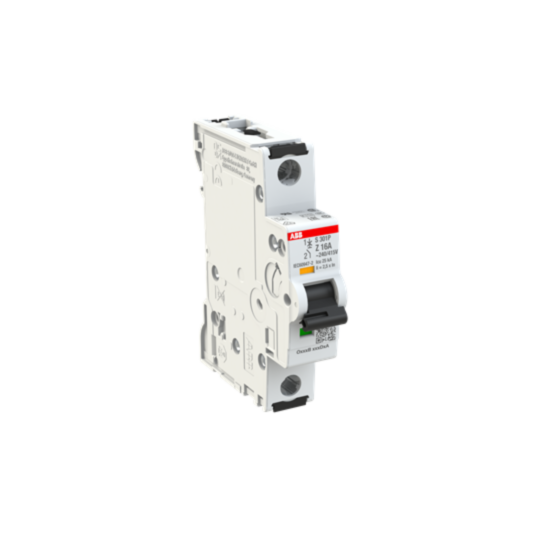

2CDS381001R0468 ABB S301P-Z16 Miniature Circuit Breaker - 1P - Z - 16 A
MPN: 2CDS381001R0468
Alt. SKU: S301P-Z16
Special Price
£28.58
£23.82
Regular Price
£51.97
This product replaces this item:
Why Choose the S301P-Z16 [2CDS381001R0468]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Provides overload and short-circuit protection for industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity: 25 kA at 240 V AC, 230 V AC, and 72 V DC.
- Rated Service Short-Circuit Breaking Capacity: 12.5 kA at 240 V AC and 72 V DC.
- Number of Poles: Single pole (1P) with one protected pole.
- Maximum Operating Voltage (UL/CSA): 480Y/277 V AC.
- Terminal Type and Capacity: Screw terminals; supports busbar 10/10 mm², flexible wire with ferrule 0.75–25 mm², rigid wire 0.75–35 mm², stranded wire 0.75–35 mm².
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Contact Position Indication: Red ON / Green OFF.
- Actuator: Toggle type, black insulated, sealable with I/O marking.
- Tightening Torque: 2.8 N·m (standard), 18 in·lb (UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What type of protection does the MCB S300P series provide?
The MCB S300P series provides overload and short-circuit protection for industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity is 25 kA at 240 V AC, 230 V AC, and 72 V DC.
What is the maximum operating voltage for this product?
The maximum operating voltage is 480Y/277 V AC.
What is the terminal capacity for wiring?
The terminal supports busbar 10/10 mm², flexible wire with ferrule 0.75–25 mm², rigid wire 0.75–35 mm², and stranded wire 0.75–35 mm².
How many poles does the MCB S300P have?
The MCB S300P has a single pole (1P) with one protected pole.
What is the mechanical and electrical endurance of this MCB?
The mechanical and electrical endurance is rated for 20,000 cycles each.
Is there any conformity information available for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381001R0468 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080118 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 16A |
| Alternative Product SKU | S301P-Z16 |
