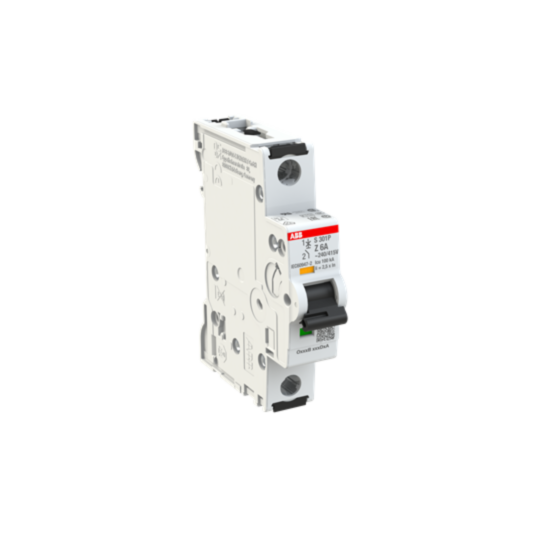

2CDS381001R0378 ABB S301P-Z6 Miniature Circuit Breaker - 1P - Z - 6 A
MPN: 2CDS381001R0378
Alt. SKU: S301P-Z6
Special Price
£31.66
£26.38
Regular Price
£57.55
This product replaces this item:
Why Choose the S301P-Z6 [2CDS381001R0378]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Miniature Circuit Breaker for protection against overload and short circuits.
- Rated Ultimate Short-Circuit Breaking Capacity (Icu): 100 kA at 230 V AC, 240 V AC and 72 V DC.
- Rated Service Short-Circuit Breaking Capacity (Ics): 100 kA at 230 V AC, 240 V AC and 72 V DC.
- Nominal Voltage: Up to 480Y / 277 V AC (UL/CSA rated).
- Contact Configuration: Single pole (1P) with red ON / green OFF indication.
- Terminal Type: Screw terminals with failsafe bi-directional cylinder-lift design.
- Connecting Capacity: Busbar 10/10 mm²; Flexible cables 0.75 to 25 mm²; Rigid cables up to 35 mm².
- Mechanical and Electrical Endurance: 20,000 operating cycles each.
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity (Icu) is 100 kA at 230 V AC, 240 V AC, and 72 V DC.
What is the nominal voltage rating for this circuit breaker?
The nominal voltage rating is up to 480Y / 277 V AC (UL/CSA rated).
What types of cables can be connected to the MCBs S300P?
It can connect busbars of 10/10 mm², flexible cables from 0.75 to 25 mm², and rigid cables up to 35 mm².
How is the contact configuration of the MCBs S300P series designed?
The contact configuration is single pole (1P) with red ON / green OFF indication.
What is the mechanical and electrical endurance of this circuit breaker?
The MCBs S300P series has a mechanical and electrical endurance of 20,000 operating cycles each.
What dielectric test voltage does the MCBs S300P series withstand?
It withstands a dielectric test voltage of 2 kV at 50/60 Hz for 1 minute.
| Manufacturer Part Number | 2CDS381001R0378 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080217 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 6A |
| Alternative Product SKU | S301P-Z6 |
