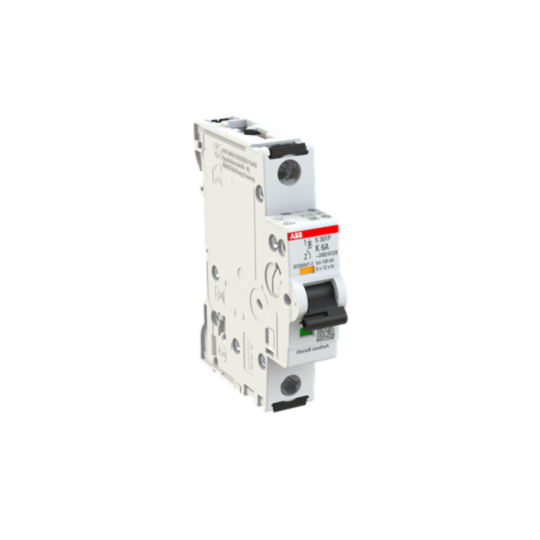

2CDS381001R0377 ABB S301P-K6 Miniature Circuit Breaker - 1P - K - 6 A
MPN: 2CDS381001R0377
Alt. SKU: S301P-K6
Special Price
£29.35
£24.46
Regular Price
£53.38
This product replaces this item:
Why Choose the S301P-K6 [2CDS381001R0377]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity (Icu): 100 kA at 230/240 V AC and 72 V DC.
- Rated Service Short-Circuit Breaking Capacity (Ics): 100 kA at 230/240 V AC and 72 V DC.
- Operating Voltage (UL/CSA): 480Y / 277 V AC.
- Number of Poles: 1P (Single Pole).
- Contact Position Indication: Red ON / Green OFF.
- Terminal Type and Capacity: Screw terminals; flexible 0.75–25 mm², rigid up to 35 mm², busbar 10/10 mm².
- Mechanical and Electrical Endurance: 20,000 cycles each.
- Tightening Torque: 2.8 N·m (standard), 18 in·lb (UL/CSA).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity (Icu) is 100 kA at 230/240 V AC and 72 V DC.
What is the operating voltage for this product?
The operating voltage is 480Y / 277 V AC.
How many poles does the MCBs S300P series have?
This series features a single pole (1P).
What is the cable capacity for the terminals?
The terminal type is screw terminals, with a capacity for flexible cables of 0.75–25 mm², rigid cables up to 35 mm², and busbar of 10/10 mm².
What is the mechanical and electrical endurance of the MCBs S300P?
The mechanical and electrical endurance is rated for 20,000 cycles each.
What is the tightening torque specification?
The tightening torque is 2.8 N·m (standard) and 18 in·lb (UL/CSA).
| Manufacturer Part Number | 2CDS381001R0377 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080224 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 6A |
| Alternative Product SKU | S301P-K6 |
