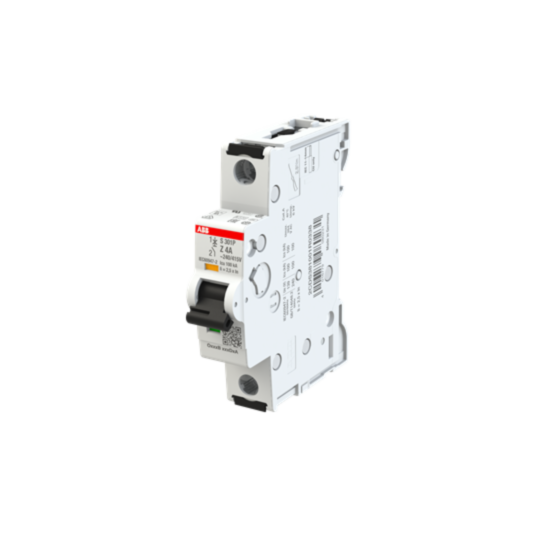

2CDS381001R0338 ABB S301P-Z4 Miniature Circuit Breaker - 1P - Z - 4 A
MPN: 2CDS381001R0338
Alt. SKU: S301P-Z4
Special Price
£35.72
£29.77
Regular Price
£64.96
This product replaces this item:
Why Choose the S301P-Z4 [2CDS381001R0338]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits.
- Rated Breaking Capacity: 100 kA at 230/240 V AC and 72 V DC.
- Number of Poles: Single pole (1P).
- Electrical Endurance: 20,000 AC cycles.
- Mechanical Endurance: 20,000 cycles.
- Terminal Type: Screw terminals with failsafe bi-directional cylinder-lift design.
- Connecting Capacity: Flexible 0.75–25 mm², rigid 0.75–35 mm², busbar 10/10 mm².
- Tightening Torque: 2.8 N·m (18 in·lb for UL/CSA).
- Contact Position Indication: Red for ON, green for OFF.
- Installation Size: DIN 43880 size 1.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated breaking capacity of the MCBs S300P?
The rated breaking capacity is 100 kA at 230/240 V AC and 72 V DC.
How many poles does the MCBs S300P have?
The MCBs S300P is a single pole (1P) device.
What is the connecting capacity for cables?
The connecting capacity is flexible 0.75–25 mm², rigid 0.75–35 mm², and busbar 10/10 mm².
What is the tightening torque for the terminals?
The tightening torque is 2.8 N·m (18 in·lb for UL/CSA).
What is the installation size of the MCBs S300P?
The installation size is DIN 43880 size 1.
What standards does the MCBs S300P comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381001R0338 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080231 |
| Product Image | For Illustration Purposes Only |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 4A |
| Alternative Product SKU | S301P-Z4 |
