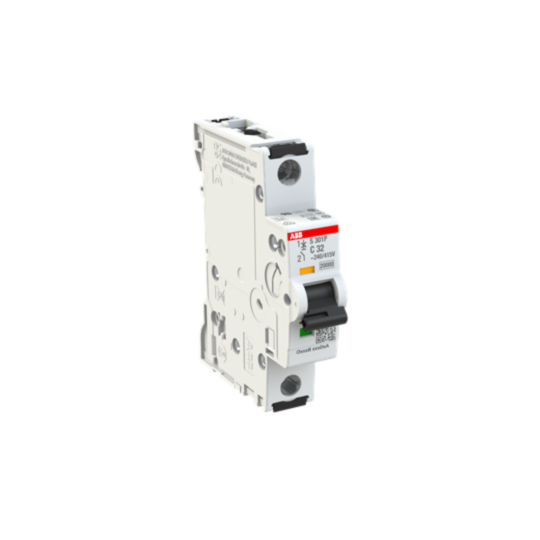

2CDS381001R0324 ABB S301P-C32 Miniature Circuit Breaker - 1P - C - 32 A
MPN: 2CDS381001R0324
Alt. SKU: S301P-C32
Special Price
£26.54
£22.12
Regular Price
£48.26
This product replaces this item:
Why Choose the S301P-C32 [2CDS381001R0324]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Protection against overload and short circuits in industrial installations.
- Rated Ultimate Short-Circuit Breaking Capacity (Icu): 25 kA at 240 V AC, 72 V DC, and 230 V.
- Rated Service Short-Circuit Breaking Capacity (Ics): 10 kA at 240 V AC.
- Maximum Operating Voltage: 480Y / 277 V AC (UL/CSA).
- Number of Poles: Single pole (1P).
- Terminal Type and Size Range: Screw terminals, 0.75–35 mm² (flexible, rigid, stranded) and busbar 10/10 mm².
- Contact Position Indication: Red ON / Green OFF.
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Electrical and Mechanical Endurance: 10,000 AC cycles and 20,000 mechanical cycles.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the primary function of the MCBs S300P series?
The MCBs S300P series provides protection against overload and short circuits in industrial installations.
What is the rated ultimate short-circuit breaking capacity of this product?
The rated ultimate short-circuit breaking capacity (Icu) is 25 kA at 240 V AC, 72 V DC, and 230 V.
What is the maximum operating voltage for the MCBs S300P series?
The maximum operating voltage is 480Y / 277 V AC (UL/CSA).
How many poles does the MCBs S300P series have?
The MCBs S300P series is a single pole (1P) device.
What is the terminal type and size range for this product?
The terminal type is screw terminals, with a size range of 0.75–35 mm² (flexible, rigid, stranded) and busbar 10/10 mm².
What is the electrical endurance of the MCBs S300P series?
The electrical endurance is rated for 10,000 AC cycles.
What standards does the MCBs S300P series conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381001R0324 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080262 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 32A |
| Alternative Product SKU | S301P-C32 |
