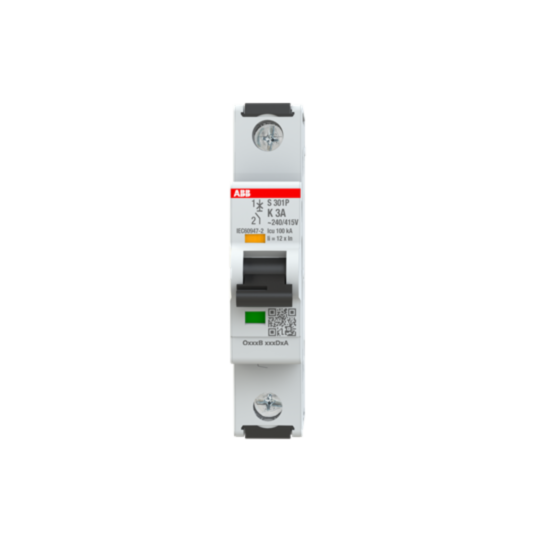

2CDS381001R0317 ABB S301P-K3 Miniature Circuit Breaker - 1P - K - 3 A
MPN: 2CDS381001R0317
Alt. SKU: S301P-K3
Special Price
£37.16
£30.97
Regular Price
£67.56
This product replaces this item:
Why Choose the S301P-K3 [2CDS381001R0317]
The MCBs S300P series assures protection in industrial installations against overload and short circuits. This product is manufactured according to international IEC and UL standards, for the markets where it is required.
Technical Specification
- Function: Miniature Circuit Breaker providing overload and short-circuit protection for industrial installations.
- Voltage Ratings: Rated for up to 480Y/277 V AC (UL/CSA) and tested at 230/240 V AC and 72 V DC.
- Breaking Capacity: Ultimate and service breaking capacity of 100 kA at 230/240 V AC and 72 V DC.
- Contact Configuration: Single pole (1P) with toggle actuator marked I/O and red/green position indication.
- Terminal Type & Size: Screw terminals supporting busbar 10/10 mm², flexible conductors 0.75–25 mm², and rigid/stranded up to 35 mm².
- Electrical & Mechanical Endurance: Rated for 20,000 AC cycles and 20,000 mechanical operating cycles.
- Insulation & Dielectric Strength: Insulation Group II with dielectric test voltage 2 kV at 50/60 Hz for 1 minute.
- Tightening Torque: 2.8 N·m (18 in·lb UL/CSA).
- Installation Size: Complies with DIN 43880 standard, size 1.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the MCB S300P series?
The MCB S300P series provides overload and short-circuit protection for industrial installations.
What are the voltage ratings for the MCB S300P?
It is rated for up to 480Y/277 V AC (UL/CSA) and tested at 230/240 V AC and 72 V DC.
What is the breaking capacity of the MCB S300P?
The ultimate and service breaking capacity is 100 kA at 230/240 V AC and 72 V DC.
What is the terminal type and size for the MCB S300P?
The MCB features screw terminals supporting busbar 10/10 mm², flexible conductors 0.75–25 mm², and rigid/stranded up to 35 mm².
What is the electrical and mechanical endurance of the MCB S300P?
It is rated for 20,000 AC cycles and 20,000 mechanical operating cycles.
What is the tightening torque for the MCB S300P?
The tightening torque is 2.8 N·m (18 in·lb UL/CSA).
Is the MCB S300P compliant with any standards?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS381001R0317 |
|---|---|
| Packed Quantity | 1 |
| Barcode | 4016779080293 |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Number of Poles | 1 Pole |
| Amperage | 3A |
| Alternative Product SKU | S301P-K3 |
